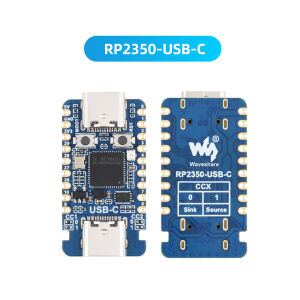

RP2350-USB-C Mini Development Board Type C Mini Development Board Dual Male/Female Dual Core Microcontroller Development Board

Product Features:1. Equipped with RP2350A dual core dual architecture chip, 150MHz main frequency, ARM/RISC-V architecture for free switching2. Stamp hole half hole mini board type, dual Type-C, supports bidirectional switching of power supply from USB host to slave3. Built in 520KB SRAM+2MB flash memory, equipped with 15 GPIO ports and SPI/I2C/UART/ADC/PIO peripherals4. Supports low-power sleep mode, drag and drop burning, and comes with on-chip temperature sensing precision monitoring chip5. Adapt to IoT terminals, DIY peripherals, industrial control, embedded teaching, and small automation equipment developmentCharacteristic parameters:Version: RP2350-USB-C PIO-USB Female Edition; RP2350-USB-CM PIO-USB Public Port VersionAdopting RP2350A microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with clock operating frequency up to 150MHz, supporting users to flexibly switch between the two architecturesBuilt in 520KB SRAM and 2MB on-chip FlashAdopting Type-C interface, there is no need to worry about forward and backward insertionSupport Type-C interface power supply (compatible with PD protocol)Stamp hole design, can be directly welded and integrated into the user's self-designed base plateUSB 1.1 Host and Slave Device SupportSupport low-power sleep and sleep modeCan be recognized as a large capacity storage device through USB for drag and drop download of programs15 GPIO pins of RP2350A lead out2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channelsAccurate on-chip clock and timerBuilt in temperature sensor for real-time monitoring of chip temperature12 programmable I/O (PIO) state machines for custom peripheral supportProduct List:1X moduleProduct Features:1. Equipped with RP2350A dual core dual architecture chip, 150MHz main frequency, ARM/RISC-V architecture for free switching2. Stamp hole half hole mini board type, dual Type-C, supports bidirectional switching of power supply from USB host to slave3. Built in 520KB SRAM+2MB flash memory, equipped with 15 GPIO ports and SPI/I2C/UART/ADC/PIO peripherals4. Supports low-power sleep mode, drag and drop burning, and comes with on-chip temperature sensing precision monitoring chip5. Adapt to IoT terminals, DIY peripherals, industrial control, embedded teaching, and small automation equipment developmentCharacteristic parameters:Version: RP2350-USB-C PIO-USB Female Edition; RP2350-USB-CM PIO-USB Public Port VersionAdopting RP2350A microcontroller chipUnique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard3 RISC-V processor, with clock operating frequency up to 150MHz, supporting users to flexibly switch between the two architecturesBuilt in 520KB SRAM and 2MB on-chip FlashAdopting Type-C interface, there is no need to worry about forward and backward insertionSupport Type-C interface power supply (compatible with PD protocol)Stamp hole design, can be directly welded and integrated into the user's self-designed base plateUSB 1.1 Host and Slave Device SupportSupport low-power sleep and sleep modeCan be recognized as a large capacity storage device through USB for drag and drop download of programs15 GPIO pins of RP2350A lead out2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channelsAccurate on-chip clock and timerBuilt in temperature sensor for real-time monitoring of chip temperature12 programmable I/O (PIO) state machines for custom peripheral supportProduct List:1X module
