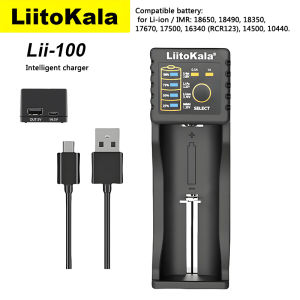

LiitoKala Lii-100 Lii-100C Lii-100B Battery Charger For 18650 18350 26650 16340 RCR123 14500 3.7V 1.2V Ni-MH Ni-Cd 2A

FeaturesU have over discharge, short circuit, smart battery identification and detection of reverse battery protection.U charging mode, constant current and constant voltage.U DC input, the charger power supply 5V-1A (Micro head).U Micro USB DC 5V input, single slot independent charging and management system.U Available for 2 charge current selection (500mA / 1000mA).U LED display charging status 25% 50% 75% 100%.SpecificationU Input Power: Micro USB DC 5V / 1A.U Output voltage: 4.2V ± 1% / 5V.U Output current: 500mA / 1000mA.U constant voltage charging, cut-off current: U External power supply standby current: Compatible battery: for Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440.Size: 113 mm × 38 mm × 32 mm (length / width / height).Color:As pictures show.Material:Plastic.Package included:1 * Liitokala Lii-100B / Lii-100 18650 26650 Battery Charger.1 * Cable.1 * Manual. Charger requirements and functions: 1. Adopt Micro USB DC 5V input, single slot independent charging and microcomputer management system2. Lithium battery can be used for two charging current options (1000mA /2000mA), nickel metal hydride battery charging current default 1000mA3. LED displays charging status 30% 70% 100% and battery type NiMH 1.2V Li-ion 3.7V4. It can automatically identify li-ion battery and ni-MH battery5. With 0V voltage activation function, 1.6-2.2V cannot be charged (but there will be activated current donation type charging).6. Overcharge and overdischarge, short circuit, intelligent identification of bad batteries and reverse battery detection and protection.7. Charging mode, constant current and constant voltage8. DC input, charger working power supply is 5V-2A (Micro plug)9. With USB 5V/1000 mA USB automatic identification output function, LED and function description 1. Button: in the case of power, at any time hold down the selection button to keep 2 seconds to convert 1000mA 2000mA charging current;2. LED: When the charger is connected to 5V power supply, all the LED of the charger will be on instantly. If the battery is not put into the lamp, it will be off.When a battery is detected, the battery identified by default is charged 5 seconds later. At this time, the charging indicator blinks according to the corresponding power ratio. When no power is on, load the battery to check the power ratio (it will be off after 5 seconds, and you need to check it again).USB output indicator: when the USB output is detected, the electric quantity indicator lights on for 10 seconds and then goes off. Press the button to check the electric quantity.4. LED display reference map Electrical technical parameters: 1, input power: Micro USB DC 5V/2A2, output voltage: 4.2V ±1%3, output current: 1000mA/2000mA4, constant voltage charging, cut-off current: 5, external power standby current: Iv. USB output function:1, USB port output no-load voltage: 4.90-5.30V;2, output current: 1000mA;3, no-load current :4, load 1000mA current, its port output voltage: 4.75-5.25V;5, stop output protection voltage: 3.0±0.1V;Five, compatible battery:Li-ion/IMR: 26650,22650,21700,18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440Charger size: 113mm× 38mm×32mm(l/W/H)Weight: 80g Package included:1 * Liitokala Lii-100C Battery Charger.1 * Cable.1 * Manual.
