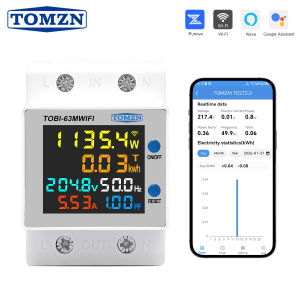

TOMZN 6IN1 Meter WIFI Smart Circuit Breaker Voltage Current Power Bidirectional Energy Frequency PF 85-265VAC 63A 16kW

TOB1-63MWIFI 6IN1(voltage、current、power、energy、PF、frequence)meter+circuit breakerGeneral The single-phase remote-controlled smart electricitysynchronously measure voltage, current, active power, electrical energy (kWh), frequency, and powerfactor. When connected to a network, users can remotely and scheduledly turn on/off the power via anApp. It also integrates alarm functions for voltage, current, and power overloads; in case of an alarm, themeter will automatically trip the relay to provide protectionFunction1. Voltage、current、power、energy、PF、frequence dispaly. It can be displayed simultaneously on the device side and the APP side.2. Voltage, current and power peak values display.3. Time switch4. Bidirectional measurement.5. The accumulated energy can be cleared.6. Restore factory settings.7. Overvoltage protection, undervoltage protection, overcurrent protection, overload protection.8. Delayed recovery.9. Relay memory function.Technical Indicators1. measurement accuracy: 1%±2 word2. sample frequency: 2 per second3. measurement parameters:AC voltage: 85-260VElectric energy: 0-99999kwh (Unlimited in app)AC current: 0.00-63.0AFrequency: 45-65HzReal power: 0-16000WPower factor: 0.00-1.004. Installation size: 544580 mm5. Installation method: DIN Rail (C45 35mm)Noted: You can scan this QR code to download the device-related APP.
