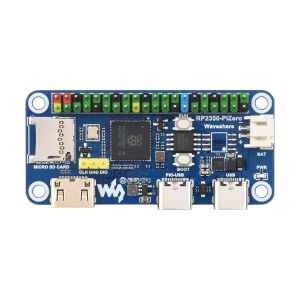

Waveshare RP2350-PiZero Development Board Raspberry Pi Pico 2 Base On RP2350B 16M Flash DVI PIO-USB Interface Microcontroller

Waveshare RP2350-PiZero Development Board, Based On The Raspberry Pi RP2350 Dual-core & Dual-architecture Microcontroller, 520KB SRAM And 16MB Onboard Flash Memory, compatible with Raspberry Pi 40PIN GPIO headerRP2350-PiZero Development BoardBased On Raspberry Pi RP2350Onboard DVI interface, TF card slot and PIO-USB port Board specificationsRP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.RP2350B microcontroller chip designed by Raspberry Pi in the United KingdomAdopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansionType-C connector for easier useOnboard DVI interface can drive most HDMI screens (DVI compatibility required)Supports using as a USB host or device via onboard PIO-USB portOnboard TF card slot for reading and writing TF cardOnboard Lithium battery recharge/discharge header, suitable for mobile scenariosUSB 1.1 with device and host supportLow-power sleep and dormant modesDrag-and-drop programming using mass storage over USBAdapting 5 × multi-function GPIO pins2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 16 × controllable PWM channelsAccurate clock and timer on-chipTemperature sensorAccelerated floating-point libraries on-chip12 × Programmable I/O (PIO) state machines for custom peripheral supportIntegrates multiple InterfacesOnboard DVI interface, PIO-USB port and TF card slot for more possibilitiesfor reference only, the 1.3inch LCD HAT and 7inch HDMI LCD (H) are Not includedSupport C/C++, MicroPython, Arduino IDEComprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started * the DVI and PIO-USB functions are only supported in C environment and cannot be used at the same timedual-core, dual-architectureThe unique dual-core, dual-architecture capability of RP2350B allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environmentWhat's On BoardRP2350BDual-core and dual-architecture design, up to 150 MHz operating frequencyUSB Type-C connectorfor programming, USB 1.1 with device and host supportPIO-USB portfor using as a USB host or device via PIODVI interace (Mini HDMI connector)for driving DVI screen with HDMI cableTF card slotsupports SPI and SDIO interface communication16MB NOR-Flash PSRAM chip solder padsCompatible with mainstream PSRAM chips for user expansion (soldering required)RUN buttonreset buttonBOOT buttonPress it when resetting to enter download modeLithium battery headerPH2.0 header, for connecting 3.7V Lithium battery, allows recharging/discharging the battery40PIN GPIO headerCompatible with some Raspberry Pi HATsDebug interfaceoutline dimensionsResources & ServicesWiki: www.waveshare.com/wiki/RP2350-PiZeroPacking List1 x RP2350-PiZero
