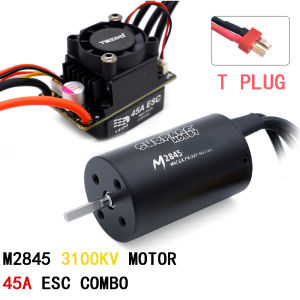

SURPASS HOBBY | SURPASS HOBBY M2430/2435/2440/2838/2845 Brushless Motor With 35A 45A ESC Combo Set for 1/10 1/12 1/14 1/16 1/18 Wtloys RC Car Bo

SURPASS HOBBY M2430/2435/2440/2838/2845 Brushless Motor w/ 35A 45A ESC Combo Set for 1/10 1/12 1/14 1/16 1/18 Wtloys RC Car BoatMotor Feature：4 Pole 12 SlotHi-torque rotor design,stable outputpower.High hardness aluminum CNCcase,0.35mm stator.High Purity High temperature resistance Copper Windings Maximizes Efficiency.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.Removable/replaceable explosion-proofhigh-precision balancingrotor.Fits all1/16th or 1/18thscale BLcars,M2.5 or M3 screw mounting holes.（M24 Series）Fitsall 1/14th or 1/16thscale BLcars, 4 of M3 screw mounting holes.（M28 Series）Motor Specification:M2430KV: 7200KV / 6300KV / 5800KVRotor Poles: 4Shaft: 2.0mmMax RPM: 60000Stator Size: 2430mmWeight: 46gM2435KV: 4800KV / 4300KV / 3200KVRotor Poles: 4Shaft: 2.0mmMax RPM: 60000Stator Size: 2435mmWeight: 59gM2440KV: 4800KV / 4300KV / 3200KVRotor Poles: 4Shaft: 2.3mmMax RPM: 50000Stator Size: 2440mmWeight: 68gM2838KV: 4300KV / 3600KV / 3200KVRotor Poles: 4Shaft: 3.175mmMax RPM: 50000Stator Size: 2840mmWeight: 91gM2845KV: 4400KV / 3800KV / 3100KVRotor Poles: 4Shaft: 3.175mmMax RPM: 50000Stator Size: 28*47mmWeight: 115gESC Feature:1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)2. Specially designed for RC car with excellent start-up, acceleration and linearity features.3.Compatible with sensorless brushless motor.4. The strong resistant current capability,excellent heat dissipation.5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.6. Low voltage cut-off protection the motor emits"Beep-Beep"and the LED flashes.7.Built-in switch-mode BEC 5V/2A for usage with high torque and high voltage servos.8. Easily programmed and compatible with pocket-sized program card.ESC Specification:Model:35ACont.Current/ Burst Current: 35A/120A.Motor Type: Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:1.on-road:28XX-size or smaller motor with the KV2.Off-road /Buggy/Monster:28XX-size or smaller motor with the KVFor 3S Lipo or 9 cells NiMH:1.On-road:28XX-size or smaller motor with the KV2.Off-road /Buggy/Monster:28XX-size or smaller motor with the KVSuitable Car: 1/16,1/14 carResistance:0.0021ohmBattery: 2~3 cells Lipo, 4~9 cells NiMHBEC Output: 5V/2A(Analog mode)Connet to motor:3.5mmDimension:40x29x29.2mmWeight:69gModel:45ACont.Current/ Burst Current: 45A/200A.Motor Type: Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:1.on-road:F540 or smaller motor with the KV2.Off-road /Buggy/Monster:F540 or smaller motor with the KVFor 3S Lipo or 6 cells NiMH:1.On-road:F540 or smaller motor with the KV2.Off-road /Buggy/Monster:F540 or smaller motor with the KVSuitable Car: 1/14,1/12,1/10 carResistance:0.0014ohmBattery: 2-3 cells Lipo, 4~6 cells NiMHBEC Output: 5V/2A(Switch mode)Connet to motor:3.5mmDimension:42.5x29x30mmWeight:74gNote:1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.
