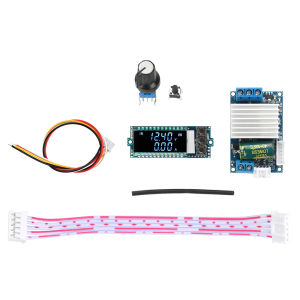

occkic | DC 6-26V 300W 25A Brushless Motor Controller BLDC Three-phase Motor Drive Board Violent Fan DIY Stepless Speed Regulation

Features:1. Supports wide voltage input, meeting various power supply adaptation requirements, with strong applicability.2. The maximum output power reaches 300W, providing strong power suitable for high-performance brushless motor driving applications.3. Utilizes potentiometer control speed regulation technology to achieve stepless speed regulation function, with flexible and precise operation.4. The product has an exquisite and compact design, simplifying the wiring structure and enhancing system stability.5. Particularly suitable for powerful fans, cooling equipment and DIY projects, with stable performance and easy integration. Parameters:Operating Voltage Range: DC 6-26V (maximum 28V), suitable for 2-6S lithium battery packsOperating Current: Rated 15A, maximum 25A (forced air cooling), instantaneous 30AOperating Power: 100-300W (related to the supply voltage; lower voltage = lower power; higher voltage = higher power)Maximum Speed: Maximum speed is related to the number of motor poles and the KV value of the motorPotentiometer Speed Control Function: Continuous speed controlButton Start/Stop Function: Yes, each press switches the device between start and stop. The speed at start-up is the speed set by the potentiometerOverload Protection: YesInput Under-Voltage Protection: None (version with LCD display can set input under-voltage protection)Overcurrent Protection: None (version with LCD display can set overcurrent protection)Hall Sensor: None0-5V Analog Speed Control: 0-3.3V input, 0-5V requires a 9.1K resistor in seriesSpeed Control Potentiometer Resistance: 10K - 100KInput Reverse Connection Protection: None. Please note the positive and negative terminals when wiring. Note:1. There are various types of brushless motors. One driver cannot control all brushless motors. This driver is not suitable for brushless motors with high rotational speed and large magnetic resistance. If you are unsure whether your motor can be used, please connect a smaller fuse in series with the power supply and test if it can start normally when the motor is unloaded. If it cannot start normally, it is not suitable for this motor.2. The driver has a reverse rotation protection function. However, please do not manually reverse the motor when it is rotating at high speed. There is a risk of burning the MOS transistor.3. When the motor is rotating at high speed, press the start/stop button. The instantaneous current is very large. In this case, the MOS transistor may be damaged due to the excessive impact current. Please use the one-click start/stop function when the rotational speed is below 50% of the full speed.4. Do not use this driver beyond the input voltage. The input has a TVS diode, which can effectively prevent the driver from being broken by the surge voltage during the motor start/stop. Do not connect motors with significantly mismatched power to prevent the driver from burning out. Packaging list:Brushless motor * 1Potentiometer accessory set * 1Digital tube display * 1 (optional)Liquid crystal display * 1 (optional)
