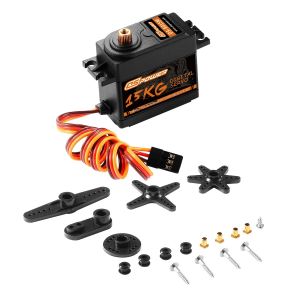

DSPOWER 6g 21g 2kg 6kg 9kg 15kg Digital Servo Motor Metal Plastic Gear for 1/8 1/10 1/14 1/16 1/24 RC Car Crawler Plane WPL MN

DSPOWER 6g 21g 2kg 6kg 9kg 15kg Digital Servo Motor Metal Plastic Gear for 1/8 1/10 1/14 1/16 1/24 RC Car Crawler Plane WPL MNFeatures: High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name: DSpower S004Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥0.90kgf·cm ; 6.0V≥0.95kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.08sec/60°Stall Current:4.8V≦700mA;6.0V≦800mAConsumption Current* (No Load):4.8V ≦90mA ;6.0V≦100mAMax. Operating Travel Angle:180°±10°(500~2500μs)Dead Band Width: ≤ 5 usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Coreless motorCase Material: ABSGear Set Material : Plastic gearWeight: 6 gSize: 22.5 × 11.5 × 21.3mmLength of Connector cable: JR 200±5mm (exposed without plug)Specifications: Item name: DSpower S007M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦1500mA;6.0V≦1800mAConsumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mAMax. Operating Travel Angle:180°±10°(1000~2000μs)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 21 gSize: 29.6 × 13.2 × 40mmLength of Connector cable: JR 250±5mm (exposed without plug)Specifications: Item name: DSpower S011M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥5.0kgf·cm ; 6.0V≥6.5kgf·cmNo Load Speed : 4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°Stall Current:4.8V ≦1900mA;6.0V≦2500mAConsumption Current* (No Load):4.8V ≦120mA;6.0V≦130mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 21gSize: 42.3 × 15.4 × 32.1mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Specifications: Item name: DSpower S014M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥9.0kgf·cm ; 6.0V≥11kgf·cmNo Load Speed : 4.8V≤0.29sec/60°; 6.0V≤0.26sec/60°Stall Current:4.8V ≦1800mA;6.0V≦2100mAConsumption Current* (No Load):4.8V ≦180mA;6.0V≦200mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 6usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 52gSize: 49.5 × 20.2 × 36.64mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Specifications: Item name: DSpower S015M Quantity: 1pcsOperating Voltage : 6.0~7.4V DCMax. Torque : 6.0V≥20.0kgf·cm ; 7.4V≥25.0kgf·cmNo Load Speed : 6.0V≤0.18sec/60°; 7.4V≤0.15sec/60°Stall Current:6.0V ≦4500mA;7.4V≦5200mAConsumption Current* (No Load):6.0V ≦100mA;7.4V≦120mAMax. Operating Travel Angle:180° ±10° (500~2500 us)Dead Band Width: ≤ 3usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 62gSize: 54.04 × 20.2 × 38.60mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Specifications: Item name: DSpower S013M Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥6.0kgf·cm ； 6.0V≥6.8kgf·cmNo Load Speed : 4.8V≤0.23sec/60°; 6.0V≤0.21sec/60°Stall Current：4.8V ≦2100mA；6.0V≦2400mAConsumption Current* (No Load)：4.8V ≦130mA；6.0V≦140mAMax. Operating Travel Angle：180° ±10° (500~2500 us)Dead Band Width: ≤ 5usMechanical Limit Angle: 360°Communication Interface: PWMMotor Type: Core motorCase Material: ABSGear Set Material : Metal gearWeight: 49gSize: 49.5 × 20.2 × 36.64mmLength of Connector cable: JR 250MM±5mm (exposed without plug)Package included: 1 * Digital Servo(optional)1 * Servo Arm Accessories
