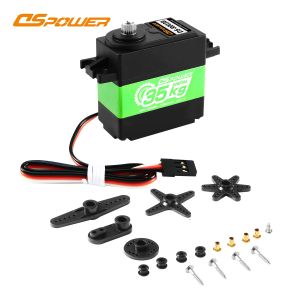

DSPOWER 25KG 35KG Digital Servo 180° 300° Metal Gear HV for 1/8 1/10 RC Car Crawler Truck Robot Boat Model Toylinx WPL JHD VRX

DSPOWER 25KG 35KG Digital Servo 180° 300° Metal Gear HV for 1/8 1/10 RC Car Crawler Truck Robot Boat Model Toylinx WPL JHD VRX

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

Specifications: 25KG Servo

Item name: DSpower DS-R003B

Quantity: 1pcs

Operating Voltage : 6.0~8.4V DC

Max. Torque : 8.4V≥25.0kgf·cm

No Load Speed : 8.4V≤0.12sec/60°

Stall Current:8.4V≦5000mA

Consumption Current* (No Load):8.4V≦200mA

Max. Operating Travel Angle:180° ±10°/300° ±10° (500~2500 us)

Dead Band Width: ≤ 8us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Metal gear

Weight: 66g

Size: 40× 20 × 40.5mm

Length of Connector cable: JR 270MM±5mm (exposed without plug)

35KG Servo

Item name: DSpower DS-R003B

Quantity: 1pcs

Operating Voltage : 6.0~8.4V DC

Max. Torque : 8.4V≥35.0kgf·cm

No Load Speed : 8.4V≤0.12sec/60°

Stall Current:8.4V≦5000mA

Consumption Current* (No Load):8.4V≦200mA

Max. Operating Travel Angle:180° ±10°/300° ±10° (500~2500 us)

Dead Band Width: ≤ 8us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

Gear Set Material : Metal gear

Weight: 66g

Size: 40× 20 × 40.5mm

Length of Connector cable: JR 270MM±5mm (exposed without plug)

Package included:

1 * 25KG/35KG HV Digital Servo

1 * Servo Arm Accessories
