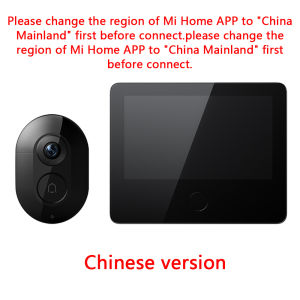

Xiaomi | Xiaomi Smart Cat eye 2 WiFi Wireless Camera Video Peephole Doorbell 3MP HD Infrared Night Vision 180 Wide Angle For Mi Home APP

SD Card needs to support Class 10!!!!!NOTE: This is a Chinese version of the product. Please select mainland China for the APP server. Servers from other countries are not supported. Please pay special attention !!!The product is suitable for installation on doors with a thickness of 35 to 110mm and a cat eye diameter of 15 to 40mm.How to connect to Mi Home App:Xiaomi Smart Cat Eye 2 Main Features● 3MP HD Camera: Captures rich details with a resolution of 2048×1536, providing clearer images and supporting HDR for better light and dark details.● HDR Support: Ensures clearer light and dark details in various lighting conditions, enhancing image quality even in backlit environments.● 180° Wide Angle Lens: Offers a broad field of view with minimal blind spots, ensuring better coverage and security outside the door.● 940nm Infrared Night Vision: Equipped with 8 infrared night vision lights and a high-sensitivity sensor, providing clear images up to 5 meters in complete darkness without disturbing red exposure.● 5-Inch 720P HD Screen: Features a clear 720P LCD screen with tempered glass full lamination process, automatically displaying the outside view when the doorbell is pressed, convenient for all family members.● 8000mAh Large Capacity Battery: Offers ultra-long battery life with a convenient Type-C charging interface.● Dual PIR Human Body Infrared Sensor: Covers a wide 180° horizontal area, triggering recording when motion is detected, with three adjustable sensitivity levels for tailored detection.● Local AI Humanoid Detection: Accurately filters out false alarms, ensuring only relevant notifications.● Two-Way Voice Call: Allows initiating video calls through the Mi Home App, with a voice change function for added security. Supports quick and customizable voice replies.Detailed parametersXiaomi Smart Cat Eye 2DAY AND NIGHT REAL-TIME HOME PROTECTION3MP high-definition imagedetailed capture of dynamics outside the door8000mAh large battery, ultra-long battery life180° monitoring field of viewwith few blind spots outside the door5 Meters infrared fill lightclear imaging day and nightDual human body infrared sensorimmediate video recording of people outside the door*5-inch 720P HD screen clear and comfortable viewingTo-way variable voice intercomvariable voice intercom for more peace of mind3MP HD cameraRich details, clear capture3 million high-definition video with a resolution of 2048×1536, the picture quality is clearer, it also supports HDR, and the backlight shooting is also clear.180° wide angle lensThe field of view is wide, there are fewer blind spots outside the door, and you can feel more confident when looking after your home.940nm infrared fill light, no matter how dark it is at night, it’s still clear8 940nm infrared night vision lights, 5m infrared fill light, and high-sensitivity sensor, no red exposure at night, clear and non-disturbing.5-inch 720P HD screenIt adopts 720P LCD screen and tempered glass full lamination process, which makes the image clearer. When someone presses the doorbell, it will automatically display the picture outside the door, making it convenient for the elderly and children to view.8000mAh large capacity batteryUltra-long battery life, embedded operating system, and 8000mAh large-capacity battery. Equipped with Type-C interface, charging is more convenient.Built-in dual PIR human body infrared sensorCovering a wide 180° horizontal area, anyone coming outside the door will immediately trigger the recording. Three levels of detection sensitivity, which can be adjusted independently according to the actual situation.Paired with local AI humanoid detectionAccurately filter out invalid alarm informationTwo-way voice callInitiate a video call through the Mi Home App. If you are alone at home, you can choose the voice change function to talk to visitors. It also supports quick replies such as "Please leave the express at the door", and you can also customize the voice reply content.1 REMOVE THE OLD CAT'S EYE①Fix the original cat's eye on the outside of the door.②Rotate the cat's eye inside the door and remove it as shown in the illustration.Tip:As shown in the figure below, select the appropriate length of screws according to the thickness of the door.2.INSTALLATION OF CAT-EYE CAMERA①Select the appropriate screws according to the thickness of the door panel, screw thescrews into the screw holes of the cat's eye camera about 5mm, and tear off the protective paper on the back of the camera adhesive sticker.② Put the screws and wires through the door panel, make sure the cat-eye camera is square and the doorbell button is underneath, and stick the camera on the door.3、INSTALLATION OF THE CARD HOLDER①Remove the card holder from the cat's eye display, and then remove the wire shield on the card holder.②Push the cable connector into the buckle at the bottom of the card holder, and then put the screws on the cat's eye camera through the screw holes on the card holder.4、FIXED CARD HOLDER① Adjust the card holder so that the screw is stuck at the top of the screw hole, concentrate the remaining part of the screw, and fix the card holder.②Organize the wiring and replace the cable shield.5、INSTALLING THE CAT'S EYE DISPLAY① Align the slide on the card holder and slide the cat's eye display into the card holder from top to bottom, making sure that the clips on the card holder are fully embedded in the bottom of the cat's eye display.② lf you need to remove the cat's eye display, push the display upward from the bottom of the mount.Packing listCat’s eye display×1Card holder (including shielding plate) ×1Cat eye camera ×1Charging cable ×1Instruction Manual×1M3×20 screw×2M3 ×40 screw ×2M3×60 screw×2M3 × 80 screw × 2Screwdriver ×1
