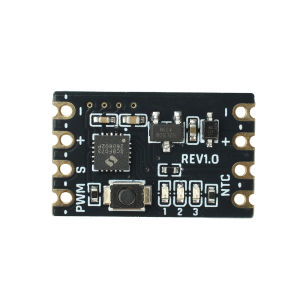

DC5-15 V Four-Wire PWM Fan Temperature-Controlled Speed Regulator Compatible with 4-Pin Fan Terminal Temperature Control Module

Product Features:1. Ultra-compact design, easily fits into any space2. Precise four-wire PWM speed control, quiet and efficient3. Made from high-quality materials for long-lasting, reliable operation4. 343 module combinations to suit a wide range of scenarios5. Intelligent temperature control automatically adjusts temperature for peace of mind and energy savingsProduct Specifications:Product Name: Mini Fan Temperature ControllerCompatible Fans: 5V/12V standard 4-wire PWM fans (does not support 2- or 3-wire fans)Input Voltage: 5–15V (input and output are connected in series; please note the fan’s voltage rating)Fan Current: Less than 3A (for high currents, it is recommended to connect the fan to the power supply via the fan connector)Fan Terminals: Compatible with 4P (2.54mm pitch)Standby Power Consumption: 10mW (5V); 25mW (12V)Temperature Sensor: NTC 50K B=3950PWM Signal: 25KHz Vpp=5VPackage Contents:Module × 1Temperature Sensor × 1 (optional)
