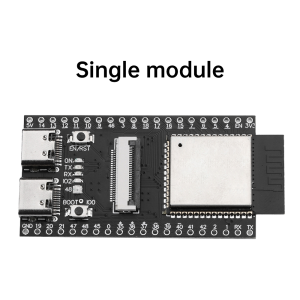

ESP32-S3-N16R8 WiFi Bluetooth Development Board ESP32-S3-CAM Module Dual Type-C LX7 CPU 240MHz Support OV2640 OV5640 OV3660 Came

ESP ESP32-S3 CAM WiFi Bluetooth Development Board Module Onboard ESP32-S3 N16R8 Dual TYPE-C OV2640 /OV5640/OV3660 CameraProduct Features:ESP32-S3 is designed based on the ESP32S3 module of PCB board antenna.The ESP32-S3 development board can be paired with two types of cameras, OV2640/OV5640.ESP32-S3 is a low-power MCU system on chip (SoC) that integrates 2.4GHz Wi Fi and low-power Bluetooth dual-mode wireless communication.4. ESP32-S3 has a complete Wi Fi subsystem and low-power Bluetooth subsystem, with industry-leading low-power and RF performance, supporting multiple low-power working states, and can meet the power consumption requirements of various application scenarios.The ESP32-S3 chip provides rich peripheral interfaces and has multiple unique hardware security mechanisms, which enable the chip to meet strict security requirements.Performance parameters:Controller: XtensaR dual core 32-bit LX7 CPU with a frequency of up to 240MHzStorage:384 KB ROM512 KB SRAM16 KB RTCSRAM8 MB PSRAMWorking voltage: 3V to 3.6V.Up to 45 GPIO2 * 12 bit ADC (up to 20 channels)Communication interface:2 12c interfaces2 12s interface4 SPI interfaces3 UART interfaces1 USB oTG interface.Temperature range: -40 to 65 degrees CelsiusWiFiSupports IEEE 802.11 b/g/n protocolSupports 20 MHz and 40 MHz bandwidth in the 2.4 GHz bandSupports 1T1R mode with a data rate of up to 150 MbpsWireless Multimedia (WMM)Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU)Immediate Block ACKFragmentation/reassembly - Bacon automatic monitoring (hardware TSF) -4 x virtual Wi Fi interfaceSimultaneously supporting infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP hybrid mode. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change simultaneouslyAntenna Diversity 802.11 mc FTMSupport external power amplifiersBluetoothBluetooth LE: Bluetooth 5, Bluetooth meshHigh power mode (20 dBm, shared PA with Wi Fi)Supports speeds of 125Kbps, 500Kbps, 1Mbps, and 2MbpsAdvertising ExtensionsMultiple Advertisement Sets Channel Selection Algorithm # 2: Wi Fi and Bluetooth coexist and share the same antennaAdvanced peripheral interfaces and sensors45 xGPIO portDigital interface:- 4xSPl-1xLCD interface (8-bit)-16 bit parallel RGB, l8080, MOTO6800), supporting mutual conversion between RGB565, YUV422, YUV420, YUV411-1xDVP 8-bit~16 bit camera interface-3xUART-2xl2C- 2x 12S- 1xRMT (TX/RX)-1x pulse counter-LED PWM controller with up to 8 channels-1x Full Speed USB OTG-1 x USB Serial/JTAG controller- 2x MCPWM-1 x SDIO host interface with 2 card slots-General DMA Controller (GDMA) with 5 receive channels and 5 send channels-1xTWAI controller, compatible with IS011898-1 (CAN specification 2.0)Simulation interface:-2x12 bit SAR ADC with up to 20 channels-1x temperature sensor-14x capacitive sensing GPIOTimer:-4x54 bit universal timer-1 × 52 bit system timer-3 x watchdog timerProduct size: 57mm * 28mmProduct list:Set One:1X development board2X needle arrangementSet 2:1X development board2X needle arrangement1X camera (OV2640/OV5640/OV3660 selectable)
