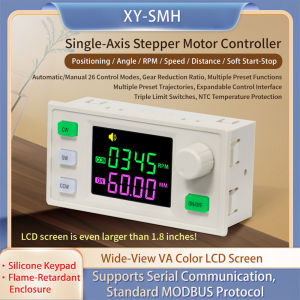

Aideepen | XY-SMH Single-Axis Stepper Motor Controller Motor Speed Controller 0~100% Adjustable With Protection TTL Serial Communication

Features:1. Built-in rich operating modes covering multiple standard motion profiles2. Power-off retention function ensures settings are preserved after power loss, resuming operation upon restart3. Supports standalone operation or seamless integration with other systems to meet diverse application needs4. Provides expandable control interfaces for easy connection to external sensors or control systems5. Specifically designed for two-phase four-wire stepper motors, suitable for general industrial control scenariosProduct Specifications:Product Name: Single-Axis Stepper Motor ControllerModel Number: XY-SMHNumber of Controlled Axes: Single-axisMotor Signal: Common CathodePower Supply Range: Universal DC 6-36VAcceleration/Deceleration Control: YesInput Reverse Polarity Protection: YesOver-Temperature Protection: YesActive Cooling: Yes (supports external fan installation; fan activates above 55°C, deactivates below 50°C)Communication Interface: Serial TTL (Standard MODBUS Protocol)Primary System Functions: Auto, Manual, Setup, Serial ControlPulse Frequency Range: 100Hz~80000HzSpeed Level Range: 0-1000Package ContentsMotor Controller1Flat Cable1
