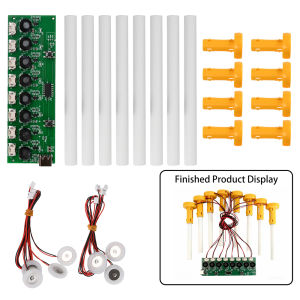

DC 5V 8-Nozzle Humidifier Module Atomisation Control Board Ultrasonic Humidifier DIY Kit Type-C Connector

Product Features:1. Constructed from 1.2mm-thick FR-4 board for a robust structure and significantly extended service life.2. Powered via a Type-C port for plug-and-play convenience and enhanced safety.3. Supports a precise atomisation frequency of 108kHz ± 5kHz, delivering a fine and uniform mist.4. Features an eight-nozzle micro-perforated atomisation plate design, providing a high mist output and significantly improved humidification efficiency.5. Suitable for small humidification devices such as desktop humidifiers, car air fresheners and atomisation modules for smart home appliances.Product Specifications:Name: Eight-Nozzle Atomisation Driver BoardModel: Eight-nozzle atomisation module; Infrared remote-controlled eight-nozzle module (optional)Material: FR-4Power Connector: Type-C portSupply Voltage: DC 5VRated Current: 2.4APower: 12WAtomisation Frequency: 108kHz ± 5kHzModule: 98 x 32 mm; Board Thickness: 1.2 mmAtomiser Plate Specifications:Name: Micro-hole Atomiser PlateDrive Voltage: 5VResonance Frequency: 108–110 kHz ±5Rated Power: 2WNumber of Holes: 800Hole Diameter: 4–5 µmSilicone Sleeve Outer Diameter: 20 mmSilicone Ring Thickness: 3 mmSteel plate diameter: 16 mmCable length: 25 cmTerminal connectors: PH1.25Product list:Set 1:1 x module8 x cotton swabs8 x brackets8 x atomiser platesSet 2:1 x module8 x cotton swabs8 x brackets8 x atomiser plates1 x remote control
