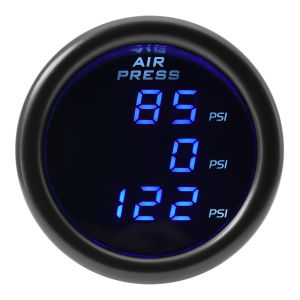

RYSJM | 52mm Air Pressure Gauge Triple Dual Air Bag Press Display With 10mm Sensor Barometer Meter For DC12V-24V Car Vehicle

Product Introduction:-Product Name: 52MM Air Bag Pressure Gauge/Car Air Pressure Gauge-Instrument size: 52MM-Applicable vehicle model: For 12V 24V Car Truck-Sensor size: 10MM (1/8NPT)-Cable Length：23inchesBG0044 Wiring instructions:Ⅰ、 Sensor three core wire:1. Red - Sensor 5V input;2. Black - Sensor GND input;3. Yellow - Sensor signal output. Ⅱ、 Two core power cord:1. Red - Positive pole (ACC);2. Black - Negative electrode (grounding).Ⅲ、 Wiring steps:1. First, install the two sensors separately at the designated positions on the vehicle;2. Take out the meter and fix it in the viewing position (without affecting the driver's line of sight), insert the 9P bus into the wiring port on the instrument panel back cover;3. Insert the two sensor harness plugs into the fixed sensors separately. Connect the power supply and connect the small light control wire. Refer to the instruction manual for the correct wiring method.BG0045 Wiring instructions:Ⅰ.Sensor three-core wire: 1. Red-sensor 5V input;2.Black-sensor GND input；3.Yellow- sensor signal output.Ⅱ.Two core power cord: 1. Red positive pole (ACC);2.Black negative (ground).Ⅲ. Wiring Steps:1.First install the three sensors to the designated position of the vehicle.2.Take out the meter and fix it to the viewing position (without affecting the driver's sight), and insert 10p bus into the wiring port of the rear cover of the instrument.3.Insert the three sensor harness plugs into the fixed sensor respectively, Connect the power supply and connect the small lamp control line. See the figure below for the correct wiring mode.BG0044 package includes:-1X 52MM Air Bag Pressure Gauge-1X Cable-2X Sensor-1X instruction manualBG0045 package includes:-1X 52MM Car Air Pressure Gauge-1X Cable-3X Sensor-1X instruction manual
