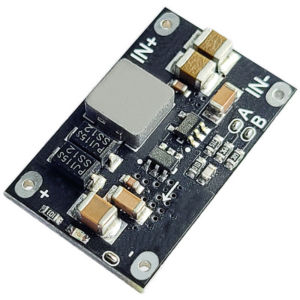

Aideepen | DC-DC 3-5.5V to 12V 1A Step-Down Boost Module 10W to Set 5V 8V 9V 12V Output Lithium Battery PCB DC-DC Step-Down Boost Board

Features:1. Made of high-quality materials for long-lasting durability2. Sleek design3. Stable performance4. Easy to use5. Wide range of applicationsSpecifications:Input voltage range: 3V–5.5V. The input voltage must be lower than the set output voltage.The output voltage can be set to 5V, 8V, 9V, or 12V; the default is 12VOutput Capability: When powered by a 3.6V lithium battery, it can output 5V at 1.5A, 8V at 1A, 9V at 1A, or 12V at 0.8A;When powered by a 5V input, it can output 8V at 1.2A, 9V at 1.2A,or 12V at 1AWhen the default 12V output is active, the LED indicator consumes approximately 1mA (input current is approximately 3mA).If the indicator is turned off, the input current under no-load conditions is Voltage Setting Instructions:On the front of the PCB, you will see the letters “A” and “B.” Use a soldering iron to connect or disconnect the pads next to these letters to change the output voltage.A B VOUTDisconnected Disconnected 5VDisconnected Connected 8VConnected Disconnected 9VConnected Connected 12VPackage Contents:DC-DC Boost Module *1
