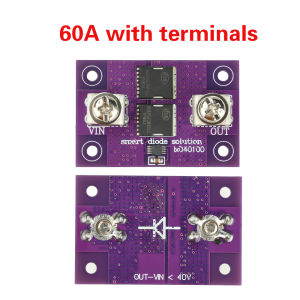

Aideepen | 40A 60A MOS Ideal Diode Module No Voltage Limitation No Grounding Solar Energy Anti Reverse Irrigation Anti Backflow Protection

Features:1. Available in 40A and 60A specifications to meet diverse power application needs with high flexibility2. Innovative ground-free structure simplifies installation complexity3. No voltage restrictions ensure broad compatibility across multiple power systems4. Integrated reverse connection, reverse current, and backflow protection enhance overall reliability5. Utilizes ideal diode control logic, significantly reducing conduction voltage drop and power consumption compared to traditional diodes, improving energy efficiency and minimizing heat generationProduct Introduction:Multiple types available to meet diverse customer requirementsSimply connect in series to the positive terminal of the circuit; no negative terminal connection requiredNo input voltage restriction (provided reverse voltage remains below 40V)300A high-current MOSFET: Single device handles 40A, dual devices handle 60A1mΩ on-resistance minimizes power loss and heat generation2μs response time to reverse polarity events; functions as a diode between input and output. Immediately shuts off output upon detecting millivolt-level output overvoltage, ensuring ultra-fast responseApplications:1. Replaces conventional high-current diodes, batteries, and solar panels for reverse current protection2. Ideal for series connection at power supply inputs to prevent reverse polarityPrecautions:Input voltage is unrestricted, but reverse voltage must remain below 40V. The output voltage must not exceed the input voltage by more than 40V. For example:- Input connected to a 24V power supply- Output connected to a battery- Compatible batteries: 12V, 24V, 36V, 48V, 60V- Not compatible with batteries above 72V (72V output - 24V input = 48V)- Reverse voltage exceeds 40V.Package Contents:Module*1 (Model of your choice)
