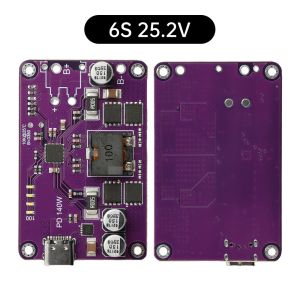

Fast Charger Module PD3.1 140W 3S 4S 5S 6S Lithium Battery Charger Discharger Module Type C Interface Suppor QC3.0 2.0 AFC FCP

PD3.1 140W Fast Charger Module 3S 4S 5S 6S Lithium Battery Charger Discharger Module Type C Interface Suppor QC3.0 2.0 AFC FCP  Features:1. Supports PD3.1 protocol and provides fast charging power of up to 140W 2. Compact and lightweight, easy to carry, suitable for outdoor and mobile use 3. Equipped with an efficient Type-C interface, supporting bidirectional fast charging and data transmission 4. Support high current charging and discharging to meet the needs of high-performance devices 5. Automatically identify battery status, dynamically adjust charging current, ensure safety and speedSpecifications:Socket type: XT30PW-M For ordinary 3A current protocols, there are: 5V3A, 9V3A, 12V3A, 15V3A, 20V3A PPS 3.3~21V 3A For 5A current protocols, there are: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A PPS 3.3~21V 3A Extension cable protocol (supporting PD3.1): 5V3A 9V3A, 12V3A, 15V3A, 20V5A PPS3.3~21V 3A 28V 5AFast charging specifications:Integrated FCP input/output fast charging protocol Integrated AFC input/output fast charging protocol Integrated SCP input/output fast charging protocol Integrated PD3.1 Input/Output Fast Charging Protocol Integrated QC2.0/QC3.0/QC3.0+input/output fast charging protocol matters needing attention: After connecting a battery with normal voltage, the indicator light will turn on, and TYPE-C can output power without activation. 2. Inspection method after receiving: Do not connect the battery, connect the TYPE-C interface to the charger. Measure the voltage on the battery pad after 3 seconds; 3S is 12.6V; 4S should be 16.8V; 5S is 21V; For 6S, it should be 25.2V. If the voltage is normal, the battery can be welded and used. Before welding the wires, please disconnect the power supply from the TYPE-C port. 3. Instructions for using this module to charge batteries: Automatically identify the maximum power of the C-port power supply and charge the battery with a maximum power of 140W. Adaptive battery terminal current. 4. Regarding the output performance of TYPE-C interface: When outputting 20V5A (mainly used for laptop or DJI lithium battery charging), it is recommended to use 4S or above lithium batteries. When using 3S, significant temperature rise may occur due to high battery current. If a 140W output is required, considering the current issue at the battery end, it must be used in conjunction with a 6S lithium battery.Package List:Lithium battery charging and discharging module * 1
