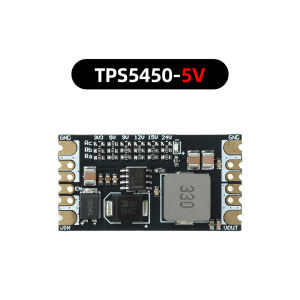

Aideepen | TPS5450 DC-DC Buck Module DC 5.5-36V Input Selectable 5V/12V/24V Max 5A Low Ripple High Efficiency Step Down Power Regulator

Features:1. Supports a wide DC input voltage range of 5.5–36V, compatible with various power supply systems, and highly adaptable2. Delivers a continuous output of 5A, easily powering high-power devices and meeting the power requirements of high-power-consumption loads3. Efficiency exceeds 90%; maintains low temperature rise during prolonged full-load operation, ensuring stable and reliable performance4. Output ripple as low as 10mV, providing a high-quality, clean power supply for precision instruments, sensors, and communication equipment5. Wide range of applications, suitable for LCD displays, battery chargers, industrial automation control, and other scenariosProduct SpecificationsInput Voltage: 5.5–36 VOutput Voltage: 5 V/12 V/24 V (select the desired voltage by connecting a 0Ω resistor)Switching Frequency: 500 kHzOutput Current: 5 A (max) – heat sink requiredEnable Function: Floating enable outputModule Protection: Input reverse connection protectionPCB Process: Half-hole + immersion gold platingNoteThe module itself does not include a heat sink. Continuous operation should be limited to less than 15W. This is not because the module cannot output higher power, but because the lack of a heat sink causes the chip to overheat, which can easily lead to chip damage. If users require continuous operation, they may add their own heat sink.Package ContentsModule × 1
