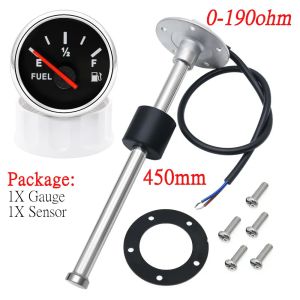

RYSJM | 52mm 0~190 ohm Fuel Level Gauge with Stainless Steel Fuel Float Level Sensor Oil Tank Meter Sender Unit For Marine Car Gauges

Red Backlight 52MM Marine Boat Fuel Level Gauge + Fuel Level Sensor 0-190 Ohm 125~500mm 400mm Oil Tank Indicator Meter 9-32V Note!!!!! In order to ensure that when the fuel gauge displays empty,and the car or boat can still travel a certain distance, there is a safety blind spot distance of about 50mm at the top and bottom of the sensor. The default resolution is 21mm, such as a size of 200mm, 200-50=150mm , 150/21=7 resistance values. that means 200mm have 7 resistance values. Option A 1X Fuel Level Gauge Option B 1X Fuel Gauge 1X Fuel Sensor Gauge Technical Data:- - Material:stainless steel 316L+anti-fog glass- Install diameter:Φ52mm or 2-1/16" - Indication range:E~F - Connection method:row insert- Backlight color:Red - Working voltage:9~32vdc - Input signal:0~190ohm Specification: * Working current::≤60mA * Operating temperature:-30℃~+75℃ * Storage temperature:-40℃~+85℃ * Grade of protection:IP67 * Item color:Black,White * Item condition:new * Package method:neutral box Package include： 1X Fuel Level Gauge 52mm Fuel Level Gauge Fuel Level Sensor Product Specifications: * Resolution range: 21 mm * Assembly: SAE standard 5 holes * Operating temperatures: - 40 to 85 * Rated current for alarm switch: 500mA * Operating temperatures: - 40 to 85 Celsius * Level Sensor fit for Diesel & Gasoline Engine * Fit for Fuel Level Gauge and Water Level Gauge * Sensor Length:125/175/225/275/325/375/425/475/525/575mm * Mounting: 5 pieces of M5 screws and 2 mm thick gasket * Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)
