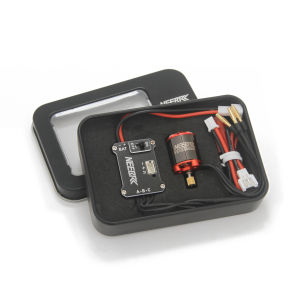

NEEBRC 1212 5000KV Outrunner Brushless Motor AM32 25A Metal ESC Combo 11T Gear for SCX30 1/30 RC Car Crawler Axial Upgrade Parts

NEEBRC 1212 5000KV Outrunner Brushless Motor AM32 25A Metal ESC Combo 11T Gear for SCX30 1/30 RC Car Crawler Axial Upgrade PartsFeatures:1-Simulated FOC,extremely excellent low-speed linearity and powerfulow-speed torque2-Parameter adjusters and software can be used to adjust and adapt tovarious types of motors3-Low voltage protection4-Metal case.5-High integration, small size, easy to install ESC Specifications:Item Name:AM32-25A 25A Brushless ESCColor: BlackRated Voltage Range:2S Li-POCurrent(A): Continuous/Peak Current: 25A/60ABEC Output: 5V/1AUsage:1) Connect the power supply, motor, and receiver correctly according to the instructions in the diagram.2) Connect the motor and the three wires of the electric controller in any order. If the throttle is reversed, switchthe two wires for connection.3) Adjust the throttle center position by adjusting the throttle fine adjustment knob and making a few long beeps tothe motor, This is the throttle center position. 1212 Motor Specifications:Item Name:1212 5000KV Brushless MotorColor: Blue/Red（Optional）Rated Voltage (V): 7.4VNo-load Current (A / 7.4V): ≤0.9ANo-load Speed (rpm / 7.4V): 37000 ± 5%Motor Internal Resistance (mΩ) (Ambient Temperature: 25°C): 150mΩ ± 3%KV Value: 5000KVNumber of Poles: 9N12PMotor Weight (g): 15.5gWithstand Voltage (DC): DC500V (3S)Rotor Balance (mg): ≤15mgRotation Direction (Viewed from Shaft End): CW / CCWOperating Ambient Temperature (°C): -10°C ~ 65°CStorage Temperature (°C): -10°C ~ 50°CStorage Humidity (%): ≤85% Package List:1 x 1212 5000KV Brushless Motor1 x AM32 25A ESC 1 x Packaging box
