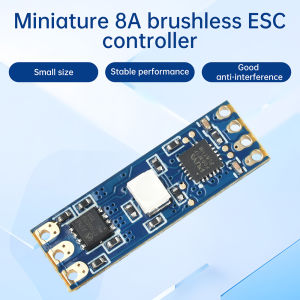

Aideepen | 2S-3S DC5V-16V 8A RC Model Brushless ESC Controller PWM Motor Driver Board DL03 Compatible with 1104 1106 1306 Brushless Motor

Product Features1. Supports 2S-3S batteries with a wide voltage range, accommodating diverse RC model requirements2. High operational stability ensures efficient and sustained motor performance3. Enables precise speed control, flexibly adjusting motor RPM based on control signals4. Compact and lightweight design saves space, suitable for installation in various micro RC models5. Smooth low-speed startup reduces impact stress, extending equipment lifespanProduct Specifications:Output Capacity: Continuous current 8A (Depends on actual load power)Input Power: DC 12V (DC 5-16V/2-3S lithium battery pack)Control Signal: PWMPulse Width: 0.9mS~2mSImportant Notes:1. Always double-check positive and negative terminals before wiring! Strongly recommend connecting a capacitor and diode in parallel between positive and negative terminals to protect other ESC components!2. Overloading the ESC may cause thermal shutdown, resulting in motor speed reduction, stoppage, or even burnout!3. Capacitors must be connected for 2S batteries! Ensure adequate heat dissipation during operation, especially with 2A~3A ESCs! This ESC features only signal input pins and does not include a BEC 5V output. It operates with standard PWM signals from common RC receivers and can be tested using an ESC tester. The ESC is compatible with small brushless motors like 1104, 1106, or 1306. Actual compatibility requires testing.4. Some users experience a beeping sound with no motor rotation or insufficient speed after installation. Possible causes include:a. Ensure the motor and ESC are power-matched.b. The three wires of the brushless ESC can be connected in any order. If the direction is incorrect, simply swap any two wires.c. Standard wire colors: Red (positive), Black (negative), Yellow (signal)Package ContentsBrushless ESC125V 470μF Electrolytic Capacitor1
