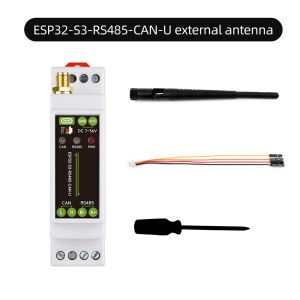

Aideepen | ESP32-S3-RS485-CAN 1-Chan Wifi Bluetooth Relay Industrial Control Dual Core 240MHz AI Computing Isolated RS485 Can Communicator

Features:1. Based on the ESP32-S3, with a dual-core 240 MHz processor and powerful AI computing capabilities.2. Supports Wi-Fi and Bluetooth 5 (LE) for more stable wireless connectivity.3. Isolated RS485/CAN interfaces for more secure industrial communication.4. On-board RS485 and CAN indicator lights for easy monitoring of the device’s operational status.5. DIN-rail mounting design for easy installation and robust protection.Functions:Based on the ESP32-S3 microcontroller, featuring a built-in Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHzIntegrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication with excellent RF performanceOn-board isolated RS485 interface, facilitating the connection of various RS485 Modbus industrial expansion modules or sensorsOn-board isolated CAN interface, facilitating the connection of various CAN devicesOn-board pin header interface, allowing connection to other devicesOn-board USB Type-C interface, usable for power supply and download/debugging, facilitating developmentOn-board terminal block power supply interface, supporting a wide voltage range of 7V to 36V, suitable for industrial power supply applicationsOn-board RTC clock chip, supporting timed tasksOn-board digital isolation, preventing external signals from interfering with the control chipOn-board integrated power isolation, providing a stable isolated voltage; no additional power supply is required for the isolated terminalsOn-board RS485 transmit/receive indicator lights and CAN activity indicator lights, making it easy to monitor the device’s operational statusDIN-rail protective enclosure, facilitating installation and use; the enclosure enhances safetySpecifications:Model: ESP32-S3-RS485-CANMicrocontroller: ESP32-S3 (default: ESP32-S3R8 chip)Wireless communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)USB interface type: USB Type-CSupply voltage: 5VFunctions: Device power supply, USB communication and firmware download, etc.Isolated RS485 Communication Interface:Interface Type: Terminal blocksDirection Control: Automatically controlled via master hardware flow settingsInterface Protection: Provides TVS diode protection, surge and electrostatic discharge (ESD) protectionMatching Resistor: Default NC, with a 120R matching resistor reserved; can be enabled via a jumper capIsolated CAN Communication Interface:Interface type: Terminal blocksDirection control: Hardware automatically detects and controls data transmission directionInterface protection: Provides TVS diode protection, surge protection and ESD protectionMatching resistor: Default NC, 120R matching resistor reserved, can be enabled via jumper capPWR power indicator: Lights up red when connected to USB and voltage is detectedRS485 indicator:Lights up green when data is transmitted from the RS485 interfaceLights up blue when data is received from the RS485 interfaceCAN Indicator: Flashes when data communication is active on the CAN interfaceSupply Voltage Range: 7V to 36VHousing: DIN-rail mounting enclosureDimensions: 91.6 × 23.3 × 58.7 (mm)Package list:Option 1:ESP32-S3-RS485-CAN × 1SH1.0 4-pin connection cable (approx. 150 mm) × 1Screwdriver × 1Option 2:ESP32-S3-RS485-CAN × 1Antenna × 1SH1.0 4-pin connection cable (approx. 150 mm) × 1Screwdriver × 1
