Aideepen | BLDC 24W Motor Driver Board 7-40V 4A Speed Controller with Hall Sensor Control for Brushless DC Motors Industrial Equipment

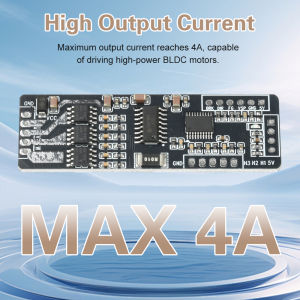

Product Features:1. Supports DC 7-40V input voltage, suitable for diverse power supply environments, enhancing device flexibility2. Integrates Hall sensor control technology for efficient and stable motor drive and speed regulation3. Maximum output current reaches 4A, capable of driving higher-power BLDC motors4. Upgraded serial port control functionality enables motor control by simply connecting the motor's three-phase wires and Hall sensor wires5. Compact design suitable for embedding in industrial equipment and small machineryProduct Specifications:Operating Voltage: 7V-40VControl Mode: 0-5V/PWM/Serial Port ControlPeak Current: 4ARated Current: 2AMaximum Power: 24WHall Sensor: YesMaximum RPM: 100,000 RPMAdditional Features: Braking/Reversing/FG Speed Frequency Output/Serial ControlWiring Method:1. Before use, confirm the brushless DC motor has Hall sensors. Motors with Hall sensors typically have 8 wires (applicable), while those without have only 3 wires.2. The module supports 120-degree or 60-degree Hall sensor electrical angles. Default configuration is for 120-degree Hall sensors. Connect the 5 Hall sensor wires: 2 are Hall sensor power lines, and 3 are Hall sensor signal lines. Refer to the motor manufacturer's specifications or color coding to distinguish and connect correctly. Note: Distinguish between motor wires, Hall sensor signal wires, and Hall sensor power wires.Important Notes:1. Before use, verify the motor's voltage and power parameters match the module's specified range.2. The module lacks reverse polarity protection; incorrect power connection will cause permanent damage.Package Contents:Module*1
