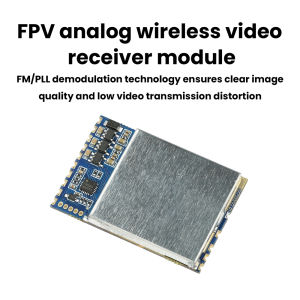

Aideepen | RX7500 6000-7500MHz Wireless Video Receiving Module 7.2GHz VRX with RSSI Output Analog Voltage Signal for Monitoring System

Features:1. Supports 6-7.5GHz wideband reception, adapting to diverse wireless video transmission scenarios2. Unlimited channel customization, enabling free editing of an unlimited number of channels3. High sensitivity at -95dBm, maintaining clear image quality even under weak signals4. FM/PLL demodulation technology ensures crisp visuals and low-distortion video transmission5. Widely applicable in industrial fields such as drones, robotics, and emergency communicationsProduct Parameters:Product Name: Video Transmission Receiver ModuleChannels: User-editable channels with no quantity limitSupply Voltage: DC 5VCurrent Consumption: 390mA MaxOperating Environment: -10~+65 ºC, 85%RHStorage Temperature: -30~+85 ºCApplication Scenarios: Drone FPV real-time video transmission systems, industrial wireless monitoring equipment, intelligent robot vision transmission systems, mobile emergency communication vehicles, or field operation equipmentRF (Radio Frequency):Receive Frequency Range: 6000~7500MHzInput VSWR: 2:1Demodulation Method: FM/PLLIntermediate Frequency (IF): 5400MHzReceive Sensitivity: -95dBmVideo Characteristics:Video Output Impedance: 75Ω, Typ.Video Output Level: 1Vp-p, Typ.3dB IF Bandwidth: 16.5MHzSignal-to-Noise Ratio (S/N): 30dB, MinRSSI Output Voltage (-30dBm to -90dBm): 1.2V to 0.6VDescription:When SPI/EN is high, the module receives SPI signals to control frequency. If no frequency setting or an invalid setting is received, it defaults to 6150MHz. The configurable frequency range is 6G to 7.5G, with 1MHz steps. SPI signal level is 3.3V, maximum 100K baud rate.Note: The RX7500's SPI mode is controlled by an external microcontroller, allowing free channel editing with no quantity restrictions.Shipping List:Module x1
