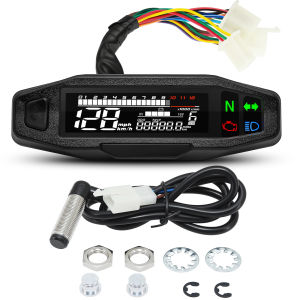

RYSJM | Motorcycle Speedometer 12K RPM Tachometer Mileage Oil Level Gauge Display For 12V Motorcycle Universal

Product Introduction：-Product Name: Motorcycle Speedometer-Function display: Speed, RPM Tachometer, Mileage, Gear, Engine Fault Light-RPM value range: 0-12000RPM-Size: 141mm * 46mm * 36mm-Color：Black-There are two different sensor options, please choose according to your vehicle model* If you lose your manual, please feel free to request the electronic version from us at any time.❗Function Description:1. Speed: The maximum displayed vehicle speed is 199km/h.2. Mileage: The maximum displayed mileage for ODO(Total Mileage) is 999,999 kilometers, and for TRIP (subtotal mileage), it is 99,999.9 kilometers.3. Oil quantity: 5-level oil quantity display. When the oil level is not connected, the working voltage is displayed.4. Rotational speed: Maximum rotational speed 12,000 r/min5. Indicator lights: The left turn signal light is green, the right turn signal light is green, the high beam is blue, the neutral gear indicator light is green, and the engine fault light is yellow.6. Gear positions: Equipped with 1-6 gear LCD display;7. Backlight: White backlight;8. Buttons: Switch between total mileage and sub-mileage, reset sub-mileage, etc.---. Parameter SettingsOn the working interface, briefly press the key to switch between ODO(Total mileage) and TRIP (subtotal mileage) :In the ODO(Total Mileage) mode of the working interface, long press the button to switch the vehicle speed between metric and imperial systems (km/hmph).In the TRIP (small mileage count) mode of the working interface, long press the button to reset the small mileage.Background parameter Settings:After holding down the key to turn on the power for 5 seconds, "SETUP" will be displayed on the screen. Press the key briefly again to enter the background parametersSettings:1. Magnetic steel number setting of the vehicle speed sensor:The interface "E-2" flashes (factory-set 2 magnet numbers), with magnet numbers ranging from 1 to 9. Press the key briefly to increase by 1, and press the key long to save and switch to the next parameter setting.2. Tire circumference setting:The interface jumps to "C-1902" flashing (the factory setting tire circumference is 1902mm). Press the button briefly to increase by 1, and press the button long to shift. After setting the fourth digit, long press the key to switch to the next parameter setting.3. Engine stroke setting:The interface flashes "1P" (factory setting l), and it can be switched by briefly pressing keys 1 to 4. After the above parameter Settings are completed, long press the key to exit the parameter setting interface:The parameter setting interface will automatically exit after no operation for 20 seconds and return to the working interface.---. Zeroing Procedure1. Hold down the key to turn on the power switch for 5 seconds. Then, "SETUP" will be displayed on the screen. After releasing the key, long press it to enter the reset program (once selected, it cannot be switched again; a short press will reset once).2. If the zeroing process exceeds three times, it will exit directly and cannot be zeroed again.Each short press reduces the total mileage by 200 kilometers. The number of times to reset increases by 1. Long press exits. There are a total of three opportunities to reset to zero.3. If the total mileage is less than 200 kilometers, it will be reset directly. If it exceeds 200 kilometers, each press will reduce the mileage by 200 kilometers.The above setting parameters will automatically exit if the keys remain inactive for 20 seconds.Package includes:①-1X Motorcycle speedometer②-1X Motorcycle speedometer-1X Speed sensor 1③-1X Motorcycle speedometer-1X Speed sensor 2
