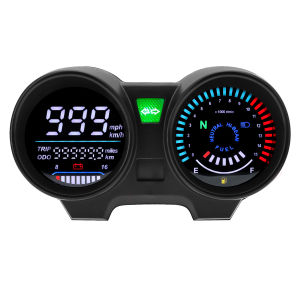

RYSJM | For TITAN150 For Honda CG150 Fan150 2010 2012 Braz Newest Digital LED Electronics Motorcycle Fuel Level Gauge Speedometer

Meter B Product Introduction-Product Name: Motorcycle Meter (Speedometer)MT0091-TITAN150-Display functions: Speed, Oil Indication, RPM, EFI Fault, Mileage, Voltage-Product size: 220mm * 118mmProduct Manual❗Wiring1. Brown/Red: Electronic fuel injection（Failure of engine）2. Black/White: ABS/ABS/Fault3. Purple: 12V battery+long power supply4. Green/Red: 0 Gear5. Light Blue: Turn Right6. Orange: Turn left7. Black: Positive pole（12V Positive+）8. Blue: High beam（Distance Light）9. Yellow/White: Oil Level10. Green: Negative pole（12V Negative-）11. Pink/Red: Engine 1st gear12. Blue/Red: 2nd gear13. Green/Black: 3 Gear14. Yellow/Red: 4 Gear15. Brown/White: 5 Gear16. Red/White: 6 Gear17. Brown: Oil malfunction（Engine Oil Failure）18. Blue/White: engine speedMeter B Product Introduction-Product Name: Motorcycle Speedometer(MT0072)-Display functions: Speed, Oil Indication, RPM，Mileage,Toggle button-Product size: 220mm * 118mmMeter C Product Introduction-Product Name: Motorcycle Speedometer(MT0061)-Display functions: Speed,Odometer,Fuel Gauge，2 Mileage Units，High Beam,Neutral Gear-Product size: 220mm * 118mm
