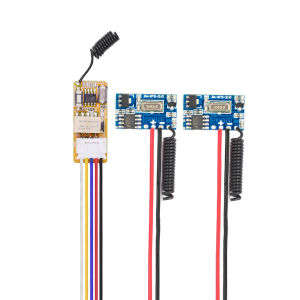

DC3.5V-DC12V Mini Relay Receiver DC3.7V-DC12V 433Mhz Wireless Transmitter PCB board Input Power Transmitting Signal

Note:Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.Product DescriptionWorking Voltage: DC3.5V-DC12VMax Load: 1A (have better Load less than 700ma)Quiescent Current: 5maRelay Working Current:20-30maSize:PCB:34147.4mm Case :39.52010.5mmWorking Mode: Momentary Toggle Latched Delay timeadjustableEncoding Type: Learning button to add TransmitterWorking model：Momentary: press one button is working /ON. loosen yourfinger is stop/OFFToggle : press one button for one time is working/ON.press the same button again is stop/OFFLatched : press button ON button is working/ON ,pressOFF button is stop/OFFDelay time:Press remote control A button, the corresponding relayactuates and keeps working until the time out.Learn method:Input 12V for the ReceiverMomentary: Press the Learning Button 1 times. Then press transmitter, the Led indicator flash for 3 times, it mean learningsuccessfully.Toggle: Press the Learning Button 2 times. Then press transmitterthe Led indicator flash for 3 times, it mean learning successfully.Latched: Press the Learning Button 3 times. Then press transmitterON button, the Led indicator flash for 3 times , Then presstransmitter OFF button,the Led indicator flash for 3 times again , itmean learning successfully.Delay time (5S): Press the Learning Button 4 times. Then presstransmitter, the Led indicator flash for 3 times, it mean learningsuccessfully.Delay time (10S):Press the Learning Button 5 times. Then presstransmitter, the Led indicator flash for 3 times, it mean learningsuccessfully.Delay time (15S):Press the Learning Button 6 times. Then presstransmitter, the Led indicator flash for 3 times, it mean learningsuccessfully.Clearing methodPress the Learning button. Until the receiver Led indicator flash for5 times, it mean Clearing Code
