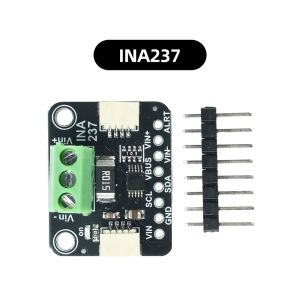

Aideepen | INA228/INA237/INA237 Sensor Module DC Current/Voltage Monitor Compatible STEMMA QT/Qwiic

Features:1. Equipped with a STEMMA QT/Qwiic interface; solder-free, plug-and-play design; supports high-side electrical parameter measurement2. Multiple models available to cover a wide range of DC power supply scenarios3. Built-in high-precision ADC chip with automatic accumulation and calculation of electrical energy and charge4. Wide input voltage range; I2C communication address is freely configurable and modifiable5. Comes with a complete set of open-source drivers, suitable for photovoltaic, industrial control, and power supply energy consumption monitoring applicationsProduct Specifications:Model 1:INA228 High-Precision Current/Power Monitoring Module—20-Bit ADC Current/Voltage Monitor, Compatible with STEMMA QT/Qwiic InterfacePerformance Features:1. Qwiic plug-and-play, solder-free design; 20-bit ADC for high-precision cumulative energy measurement2. Supports a wide 0–85V bus voltage range and precise detection of high currents up to ±20A3. Current gain error of only ±0.25%, ensuring reliable power consumption monitoring data4. Wide supply voltage range of 2.7–5.5V; I2C address is customizable5. Comprehensive open-source driver support, suitable for PV, industrial control, and power supply monitoringBasic Specifications:Current Measurement: ±20A (maximum, depending on shunt resistor)Voltage Measurement: 0V ~ 85VADC Resolution: 20-bitCurrent Accuracy: ±0.25% (gain error, maximum)Supply Voltage: 2.7V ~ 5.5VInterface: STEMMA QT / Qwiic (configurable I2C address)Module Dimensions: 25.4 mm × 20.3 mm × 10 mmModel 2:INA237 85V 10A 16-Bit Current/Power Monitoring Module Compatible with STEMMA QT/Qwiic InterfaceFeatures:Qwiic solderless plug-and-play design; high-side simultaneous measurement of voltage, current, and powerEquipped with a 16-bit ADC for automatic accumulation of energy and charge dataCompatible with 0 to 85V high-voltage buses and ±20A wide-range current detectionCurrent gain error as low as ±0.5%, with a stable 2.7–5.5V power supplyConfigurable I2C address; open-source drivers support monitoring in multiple scenariosBasic SpecificationsCurrent Measurement: ±20A (maximum, depending on shunt resistor)Voltage Measurement: 0V ~ 85VADC Resolution: 16-bitCurrent Accuracy: ±0.5% (gain error, maximum)Supply Voltage: 2.7V ~ 5.5VInterface: STEMMA QT / Qwiic (configurable I2C address)Module Dimensions: 25.4 mm × 20.3 mm × 10 mmModel 3:INA238 High-Precision Current/Power Monitoring Module – DC Current, Voltage, and Power Monitor – Compatible with STEMMA QT/Qwiic InterfacePerformance Features:1. Solder-free, plug-and-play Qwiic interface for easy high-side electrical parameter detection2. 20-bit Δ-Σ ultra-high-precision ADC, supports energy and charge accumulation calculations3. Compatible with 0–85 V high-voltage buses; measures circuit currents up to ±20 A4. Current gain error of only ±0.25%; stable power supply from 2.7–5.5 V5. Customizable I2C address; open-source drivers support various energy consumption monitoring applicationsBasic Specifications:Current Measurement: ±20A (maximum, depending on shunt resistor)Voltage Measurement: 0V ~ 85VADC Resolution: 20-bitCurrent Accuracy: ±0.25% (gain error, maximum)Supply Voltage: 2.7 V to 5.5 VInterface: STEMMA QT / Qwiic (configurable I2C address)Module Dimensions: 25.4 mm × 20.3 mm × 10 mmMain Applications:Battery Management Systems (BMS)Server/Data Center Power MonitoringSolar System Energy MeteringIndustrial Equipment Power Consumption AnalysisProduct Contents:1 × Module1 × Pin Header
