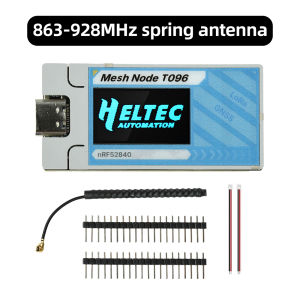

Mesh Node T096 Development Board 863-928MHz nRF52840 Microcontroller Mesh Network WiFi LoRa BLE GNSS 28±1dBm Ultra-low Power

Product Features:1. Equipped with an nRF52840 controller, integrating Bluetooth 5.0 and Bluetooth Mesh2. Supports high-power LoRa at 28±1 dBm with high reception sensitivity3. Dual-frequency, multi-mode satellite positioning with support for BeiDou global navigation4. Ultra-low-power design with built-in lithium battery charge/discharge management5. GNSS chip enables global positioning, suitable for centralized mesh networks, remote sensing, and other applicationsProduct Introduction:The Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. It is powered by the nRF52840 MCU, which provides robust processing capabilities and Bluetooth connectivity, while the SX1262 LoRa transceiver with an integrated PA delivers 28±1 dBm transmit power, ensuring exceptional communication range and link reliability. The UC6580 GNSS chip enables precise global positioning, making this device ideal for applications such as decentralized mesh networks, asset tracking, and remote sensing.The Mesh Node T096 utilizes Laser Direct Structuring (LDS) technology to design its GNSS and Bluetooth antennas, resulting in a compact, durable, and efficient antenna solution. Designed for low-power operation, this device is well-suited for battery-powered deployments. The Mesh Node T096 fully supports the Ard development environment and is compatible with open-source mesh networking projects such as Meshtastic and MeshCore, providing developers and enthusiasts with a versatile, out-of-the-box platform for building resilient, scalable mesh networks.Key Features:Supports Bluetooth, LoRa, and GNSS communicationUltra-low power consumptionMaximum output power of 28±1 dBm; low-noise amplifier (LNA) can be bypassedSupports GPS, GLONASS, BeiDou (BDS), Galileo, NAVIC, and QZSSIntegrated lithium battery management system (charge/discharge management, overcharge protection, battery level detection, automatic switching between USB and battery power)USB-C interface with comprehensive voltage regulation, ESD protection, short-circuit protection, and RF shieldingSupports example development framework, providing LoRa/LoRaWAN sample programsCompatible with Meshtastic and MeshCoreProduct Specifications:MCU (Microcontroller): nRF52840LoRa Chip: SX1262GNSS Chip: UC6580 (L1+L5 dual-frequency)Frequency: 863–928 MHzMaximum transmit power: 28 ± 1 dBmBluetooth Low Energy: Bluetooth 5.0, supports Bluetooth Mesh (mesh networking)Hardware resources: USB 2.0, 2 LEDs, 2 buttons, 4 SPI, 2 TWI, 2 UART, 4 PWM, QSPI, I2S, PDM, QDEC, etc.Interfaces: USB Type-C, 1.25-2P lithium-ion battery connector, 1.25-2P solar panel connector, LoRa antenna (IPEX 1.0), GNSS antenna (IPEX 1.0), 2 rows of 13-pin header pins with 2.54 mm pitchPower Supply: USB-C 5VLithium Battery: 3.7V (3.3–4.2V)Operating Temperature: -20 to 70 °CDimensions: 52.00 × 25.40 × 10.26 mmPackage Contents:1x Development Board2x 18-pin Header Pins2x 2-pin Terminal Cables1x Antenna
