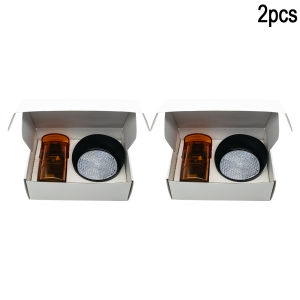

Infrared Reflector Detector Photocell Sensor For Swing Sliding Garage Gate Door Opener Safety 12-24V DC/AC 7m 12m

Infrared Reflector Detector Photocell Sensor For Swing Sliding Garage Gate Door Opener Safety 12-24V DC/AC 7m 12mWith Waterproof CoverReflector Photocell is a photoelectric sensor that loads the transmitter and the receiver into the same device, fits areflector in front of it, and completes the photoelectric control effect using the reflection principle.It can be used to detectchanges in light and color on the ground, or to detect close objects.Commonly used application scenarios are: lifting door,revolving door, sliding door, wall security protection, window and balcony security, warehouse security, parking lot andother outdoor security places.Technical parameters:1). Operating Voltage: AC9V~24V (AC Frequency: 45~60HZ,Imax=15mA);DC12V~24V(Imax=38mA)2). Working current: 3). Induction distance: 4). Sensitivity: Fixed5). Reaction time: about 30mS6). Ambient light intensity: Max.5000lux7). Emission tube parameters: wavelength: 740nm; luminous type: visible red light8). Relay:Load parameter: AC 3A/125VAC; DC 3A/30VDCCoil parameters: DC9VDC (Imax=20mA)9). LED indicator light: Green LED lamp: 1). Power switch; 2). Light flash indicates weak signalRed LED lamp: working status signal (on / off: working signal valid / invalid)10). Operating temperature: -20℃~ + 70℃11). Storage temperature: -30℃~+ 80℃12). Product Size (LxWxH): 115 * 54 * 50mmReflective plate (LxWxH): 120 * 80 * 6.5mm13). Product weight: 192gProduct electrical interface:Product installation:1)Ensure that the maximum induction distance can not be exceeded;2) places the reflector in the appropriate position to the sensor;3) adjusts the position of the sensor horizontal and the vertical direction according to the reflector and points the sensorto the center of the reflector [During the first installation and commissioning, fix the sensor first, align the reflector at thesensor, and then move the reflector from a near to far direction to the desired location];4) Do not power the sensor before completing all electrical wiring
