Feetech STS3215 12V 30KG High Precision Feedback Magnetic Encoding Serial Bus TTL Servo Motor 360 Degrees Continuous Rotation

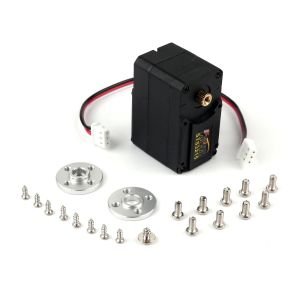

Feetech STS3215 12V 30KG High Precision Feedback Magnetic Encoding Servo 360 Degrees Continuous Rotation Serial Bus TTL Servo ST-3215-C018 is 12V 30kg serial bus smart servo,adopt plastic case,core motor,metal gearbox,Feetech self researched and developed TTL control board,12 bit high precision magnetic coding sensor. The stall torque is 30kg.cm,can achieve 0-360 degrees any angle controllable,multi-turn continuous operation mode, it can realize the function of setting the middle point with one key,acceleration slow start and slow stop,can feedback position,speed,voltage,current,temperature,load parameters,thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.STS3215:Model:ST-3215-C018Product Name:12V 30KG. Dual axis TTL string servoStorage Temperature Range-30℃～80℃Operating Temperature Range:-20℃～60℃Size:A:45.2mm B:24.7mm C:35mmWeight:55± 1gGear type:steel GearLimit angle:NO limitBearing:Ball bearingsHorn gear spline:25T/OD5.9mmHorn type:Plastic,POMCase:PA+GFConnector wire:15CMMotor:Core MotorOperating Voltage Range:4-14VNo load speed:0.222sec/60°@12VRunnig current(at no load) :180 mA@12VPeak stall torque:30kg.cm@12VRated torque:10kg.cm@12VStall current:2.7A@12VCommand signal:DigitalPacketProtocol Type:Half Duplex Asynchronous Serial CommunicationID range:0-253Communication Speed:38400bps ~ 1 MbpsRunning degree:360° (when 0~4096)Feedback:Load, Position, Speed,  Input Voltage, Current
