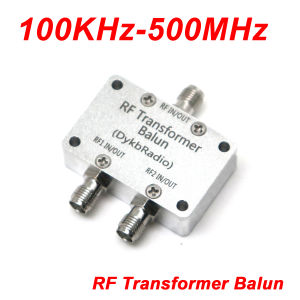

RF Balun Transformer 100kHz-8GHz 1:1 Single to Differential SMA Conversion for MAX2871 ADF4351/SI5351 Clock Signal Generator

RF Balun Transformer Modules – Single‑Ended to Differential / Differential to Single‑Ended for Clock (Sine/Square Wave), 50Ω, SMA 100KHz-500MHz /10MHz-3GHz/ 10MHz-6GHz /10MHz-8GHzBefore purchasing Please refer to the real test video of the advertisementProduct Description:These broadband balun modules convert between single‑ended (unbalanced) and differential (balanced) RF signals. They are ideal for drivingdifferential inputs of ADCs, DACs, mixers, or for converting clock signals (sine or square wave) from single‑ended to differential. Available in four frequency ranges covering from 100KHz up to 8GHz. All modules feature a 1:1 impedance ratio, 50Ω ports, SMA connectors (female), and a compact size (38×25×12 mm). They are passive (no power required). Maximum input power ranges from 23dBm to 25dBm depending on model.Common Specifications (all models):Function: Single‑ended ↔ Differential conversionBalun ratio: 1:1Impedance: 50Ω (all ports)Insertion loss: See characteristic curve (includes inherent 3dB split loss)Connectors: SMA female (outer thread, inner hole)Dimensions (excl. connectors): 38 × 25 × 12 mmPassive operationImportant Notes (for all models):Unused differential port must be terminated with a 50Ω load during testing.When connecting to an oscilloscope, set the scope input impedance to 50Ω. If your scope only has high‑impedance mode, use a 50Ω feed‑through terminator.Maximum input power varies per model – do not exceed specified value.Model Overview:ModelFrequency RangeMax Input PowerBalun-500M100KHz – 500MHz+25dBmBalun-3G10MHz – 3GHz+25dBmBalun-6G10MHz – 6GHz+23dBmBalun-8G10MHz – 8GHz+23dBmApplications:Single‑ended to differential conversion for high‑speed ADCs/DACsClock distribution (sine or square wave) to differential inputsImpedance matching and signal conversion in RF front‑endsTest and measurement setupsAmateur radio, software defined radios (SDR), communication systems
