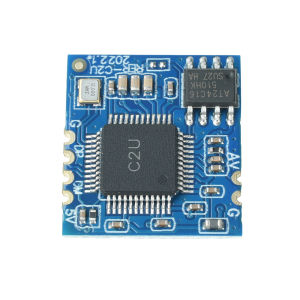

Analog Video Capture Module CVBS to USB Module UVC 18.6x16.5mm Stamp Hole for Embedded Integration CVBS Camera VCR Set-Top Box

Product Features:1. Compatible with PAL/NTSC dual-standard CVBS inputs; easy to use.2. Standard UVC driver-free USB protocol; compatible with various operating systems.3. Selectable resolution and frame rate options; adjustable image parameters (brightness, contrast, saturation).4. Miniature stamp-hole (castellated hole) package; suitable for SMT integration onto device mainboards.5. Wide range of applications; suitable for devices outputting CVBS signals, such as analog cameras, vintage VCRs, disc players, and set-top boxes.Product Specifications:Video Input Format: CVBS signal (PAL/NTSC compatible)Video Output Format: MJPEG/YUY2USB Interface Protocol: UVC (driver-free)Supported Resolutions:720x480@25/20/15/10fps (MJPEG)640x480@25/20/15/10fps (MJPEG)480x320@25fps (MJPEG/YUY2)Adjustable Parameters: Brightness, contrast, saturationDimensions: 18.6 x 16.5 mmApplications: Converts CVBS signal devices (analog cameras, vintage VCRs, disc players, set-top boxes, etc.) into driver-free USB cameras for connection to devices that support USB cameras.Functionality: Converts analog video signals (from analog cameras) into USB video signals (USB camera output). Connects to devices running operating systems such as PC, embedded Linux, or embedded Android boards. Compatible with Windows, Linux, Android, and macOS. Uses standard UVC protocol (driver-free). Features a compact stamp-hole package requiring only 6 pins, making it ideal for surface-mount assembly.Product List:1 x ModuleNote 1: This module supports standard CVBS cameras only; it does not support high-definition AHD cameras.Note 2: Soldering wires directly to the module is not recommended. Soldering affects resaleability; therefore, returns or exchanges are not accepted, and trial periods are not provided. If you are unsure about compatibility with your device, please purchase the version that includes an adapter board.
