Backup Camera Rear View Cam American License Plate Bracket-Mounted 170 Degree AHD 720P or 1080P Reverse Parking for Car Vehicle

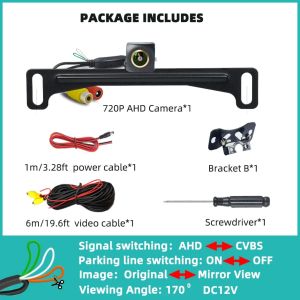

Purchase Notice► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes).►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA).►This product outputsCVBS or AHD signal (switchable), with RCAconnector , with parking line on or off (switchable), power input: DC12V►Signal Switching Guide:For displays requiring signal: Factory Settings > Reversing (Image) Settings > Select signalNote:The product comes with 2 brackets, 1 is a universal bracket, and the other is suitable for US license plate framesAHD Camera Feature :* Viewing angle: Real 170 Degrees Visible Range .* Signal format: NTSC* Image resolution: 200W pixels* Video output: AHD, CVBS signal switchable* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation* Lens : 14/16MM Fisheye 6 glass Lens .* Low illumination: 0.01Lux* Signal to noise ratio: ≥69dB* Working power supply: DC12V/2A* Working temperature: -45 °C ~ +70°C* Maximum power: 3WPackage includes:1 x Rear View Camera1 x 6m Video Cable1 x 1m Power Cable2xbrackets (1 of which is mounted on the camera)（Cut）Cable Control Functions:► Green Cable: AHD/CVBS signal switching► White Cable: Parking line on/off► Orange Cable: Image flip functionStarlight Night Vision Technology:Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations.Key Advantages:►Full-color imaging in extreme low-light conditions►Enhanced object recognition ►0.001 lux minimum illumination thresholdAHD Technical Highlights:►HD real-time transmission (25fps@1080P/720P)►500m coaxial cable transmission range►Seamless integration with legacy analog systems►Q1: No Signal/Black Screen DetectionSymptoms:"No Signal" alertPersistent black screenTroubleshooting Protocol:► Power VerificationConfirm 12V DC power delivery to camera (test with multimeter at B+ terminal)Bypass vehicle wiring: Connect directly to battery terminals for bench test► Signal Source ValidationCheck display input mode: Disconnect green control wire to force CVBS modeCycle power after signal switching (AHD↔CVBS transition requires reboot)► Legacy System CheckTest CVBS compatibility: Connect to TV's RCA input (NTSC standard verification)Q2: Monochrome Display IssueObserved Behavior:Loss of color renderingGrayscale imagingDiagnostic Procedure:► Signal Standard AlignmentPAL/NTSC mismatch resolution:AHD 1080P cameras: Set to PAL (50Hz)CVBS analog cameras: Configure NTSC (60Hz)
