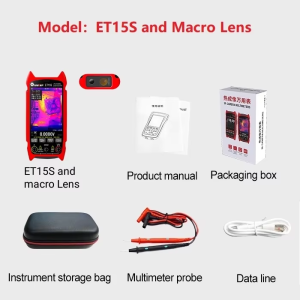

TOOLTOP ET15S Industrial 256*192 Thermal Camera Multimeter 19999 Counts 25Hz Infrared Camera PCB Board Electrical System Inspect

Note:1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated about every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-3 seconds. This is a normal phenomenon, so please don't worry.2.PC Software Download:http://doctuchuang.eirbio.cn/FR02E_EN/IR-DMM.zip3.For PCB circuit board inspection, it is recommended to buy the version containing a macro lensFeatures:Industrial-grade Thermal Camera- 256x192 resolution 25Hz thermal imaging sensor- In thermal imaging mode, multimeter can also be used.- suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.High-Precision Multimeter with 19,999 Counts- manual and automatic range options- analog needle display- Maximum input DC voltage up to 1000V   voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurementsClear Display with Rich Color Options- 3.5 inches large IPS screen with a resolution of 320x480- 15 selectable color palettes, easily switching by long pressing the side buttonWaveform VisualizationThe multimeter measurement results can be visualized as waveform graphs, clearly understand data trends and simplify fault diagnosis.Optional Macro Lenscaptures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.Available in 11 languagesIncluding Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, and Polish, catering to global users.Strong Battery Life and Convenient ChargingPowered by a detachable 18650 lithium battery with a runtime of up to 8 hours, reliable USB charging.PC Software SupportCan transfer and analysis the multimeter data chart and thermal imageSpecifications:Thermal imaging parametersSensor: Vanadium oxide (VOx)Image capture frequency:25HzThermal imaging pixels:256x192Display image resolution:427 x 320Field of View (FOV):50.0°(H) × 37.2°(V)Emissivity:0.1 – 0.99 adjustable,(0.95 by default)Temperature range:-20℃ ~ +550℃Gain mode: Auto GainColor palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep BlueAccuracy:±2℃or±2%Measurement resolution:0.1℃/0.1℉Macro Lens: Optional, no need to install, move the macro lens left and right during use.Macro lens working distance: about 5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)Multimeter parametersDisplay:19999 counts, Updates 3/secDC maximum input voltage:1000VAC maximum input voltage:750VMaximum current measurement:10AThe maximum resistance:99.99MΩThe maximum capacitance:199.99mFDuty cycle test range:0.1% ~ 99.9%Diode test range:0V ~ 3VContinuity test:199.99ΩOther parameters of the equipmentDisplay type:3.5-inch 320 * 480 resolutionUSB interface: Type-C USBStorage capacity: includes a 4G TF card and supports a maximum of 64G TF card (not included).Battery Type: Detachable 18650 Lithium-ion batteryStorage temperature:-20～60℃（-4～140℉）Operating temperature:0～50℃（32～122℉）Operating Humidity:＜85%RH （ non-condensing ）Size: 134 mm * 64mm * 28 mmWeight: Host weight: 198g (including battery), packaging weight: 390gPackage List:1 x Thermal Camera Multimeter1 x USB Cable1 x English Manual1 x storage bag1 x multimeter probe1 x Macro Lens (for optional)
