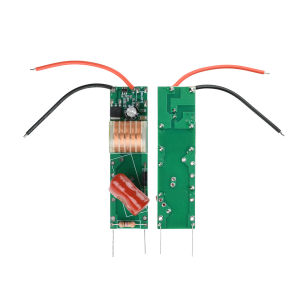

occkic | Dc 3.7V To 3KV 5KV 15KV 20KV Boost Converter Module High Power Arc Pulse Farm Insect Catching Stable Boost Board

Features:Style A1. Low-Voltage Operation: Powered by a single lithium battery (3.7V), easily drives portable devices2. Powerful Boost: Boosts 3.7V to 3000V, delivering high-voltage arc pulses for strong striking power3. Modular Design: Specifically designed for electric mosquito swatter boost applications, offering high compatibility and plug-and-play functionality4. High-Power Output: Ample output power delivers a strong and powerful arc, resulting in significant mosquito-killing effectiveness5. Streamlined and Reliable Circuitry: Few external components, low cost, stable operation, and suitable for mass productionProduct IntroductionAfter multiple upgrades and improvements, as well as field testing by numerous customers, the ideal voltage has been determined to be 3,000V. This module is a low-power-consumption, standby-mode, high-voltage, high-current output. Due to its high voltage, it enables contactless aerial discharge to eliminate pests; its high short-term power and current deliver instant pest control. With a standby current as low as 80 mA and no temperature rise during prolonged operation, it is widely applicable for household pest control—such as termites inside wooden furniture—as well as industrial applications, scientific research, and and the physical control of agricultural pests and diseases—for example, pests burrowing into fruit tree trunks can be killed directly from the tree’s surface, making it fast and efficient—as well as in animal husbandry.ParameterModule Dimensions: 80 mm (L) × 21 mm (W) × 22 mm (H)Input Voltage: DC 3.7 V (single battery cell)Output Voltage: 2,800 V to 3,000 kVStandby Current: ≈80 mAOperating Time: Can operate continuously for extended periods in standby mode without temperature riseCan operate continuously day and night in standby mode, offering broad application prospectsPackage includeModule × 1Product Features:Style B1. It only needs DC 3.7V to work, recommended lithium battery power supply, safe and reliable2. Built in arc pulse circuit, with stronger effect and faster response3. Modular design, compact size, lightweight and easy to embed into various handheld devices4. Output 5000V voltage, stable performance, suitable for various industrial scenarios5. Low heat generation technology ensures long-term safe operation and improves overall service lifeProduct OverviewThis product is a high-voltage and high current generator specially developed for modern green insecticidal needs. After multiple technical upgrades and on-site verification, it was finally determined that 5000V is the optimal kill voltage level. This device utilizes high-voltage non-contact air discharge technology, combined with instantaneous high current impact, to instantly kill various pests, and is widely used in households, agriculture, industry, and animal husbandry.Product SpecificationsSupply voltage: DC 3.7VOutput voltage: around 5000V. Two CBB81 3KV 223 capacitors are used in seriesDischarge current: 1.1A instantaneous effectWorking time: Can work continuously for a long time, standby without temperature riseStandby current: approximately 230mAPacking ListBoosting module * 1Features:Style C1. Powered by 7.4V–12V DC; can be driven by a single lithium battery cell, offering strong versatility2. Unlike ordinary high-voltage modules that risk breakdown under no-load conditions, this product supports prolonged no-load operation without overheating or board burnout3. The output terminal can be short-circuited; it resumes normal operation immediately after recovery, making it suitable for work scenarios involving frequent short circuits, such as arc-striking experiments4. Designed with a high-voltage, high-power boost chip, it remains cool during long-term operation and is stable and reliable5. While ensuring performance and reliability, the circuit uses fewer components, thereby reducing the failure rateProduct IntroductionThis module has undergone multiple upgrades and improvements, culminating in the development of this ultra-high-voltage single-stage boost module. In traditional multi-stage voltage-doubling circuits, the capacitance decreases exponentially when capacitors are connected in series; the more stages there are, the weaker the discharge spark becomes. This module employs innovative technology to directly boost the voltage to nearly 20 kV in a single stage, delivering a strong output current and an extremely intense discharge spark. The module features built-in intelligent short-circuit protection; in the event of an accidental short circuit at the output, the chip automatically limits the current to prevent damage to components caused by sudden current surges. All core components are high-power devices, supporting prolonged continuous operation with minimal temperature rise, ensuring stability and reliability.ParameterModule Dimensions: 84 mm (L) × 34 mm (W) × 36 mm (H)Input Voltage: Powered by a 7.4V DC dual-cell lithium battery or a 12V DC power supplyMinimum Operating Voltage: Operates with a single 3.7V DC batteryOutput Voltage: 15 kV–20 kVOperating Time: Can operate continuously for extended periods in standby mode without temperature riseCaution: Do not reverse the positive and negative power connections; do not exceed 13VPackage includeModule × 1
