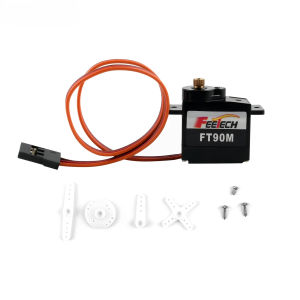

Feetech FT90M 6V 2.3kg.cm Digital Servos RC 280 Degree Metal Gear Micro Servo for RC Car Airplane Automatic Curtain/Smart Lock

Feetech FT90M 6V 2.3kg.cm Digital Servo 280 Degree Metal Gear Micro Servo for RC Car Airplane Automatic Curtain/Smart Lock Model： FT90M-C001 Product Name: 6V 2.3kg. cm Digital Servo Storage Temperature Range -30℃～80℃ Operating Temperature Range: -15℃～70℃ Size: A：23.2mm B：12.1mm C:25.5mm Weight: 13.5± 1g Gear type: Metal Gear Limit angle: NO limit Bearing: NO Horn gear spline: 20T/3.95mm Horn type: Plastic,POM Case: PC plastic Connector wire: 200mm Motor: core motor Operating Voltage Range: 3-8.4V Idle current (atstopped) 6mA@6V No load speed: 0.1sec/ 60degree @6V Runnig current(at no load) : 150mA@6V Peak stall torque: 2.3kg.cm@6V Rated torque: 0.76kg.cm@6V Stall current: 1000mA@6V Command signal: Pulse width modification Amplifier type Digital comparator Pulse width range 1000~2000usec Stop position 1500 μsec Running degree 280° (at 1000→2000μsec) Dead band width ≤4 μsec Rotating direction Counterclockwise(at 1500 →2000 μsec)
