433Mhz Wireless Remote Control Switch AC 75-220V/DC 9-72V 30A Relay On Off Remote Control Transmitter For Water Pump Motor LED

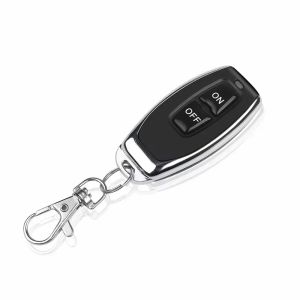

Remote control TransmitterOperating voltage: DC12V (23A/12V battery x1) Transmitting frequency: 433MHz Encoding Type: Fixed code Receiver sensitivity: > -105dB Transmission distance : 100M (Open field) Size: approx 552810mmReceiver boardOperating voltage: AC 75V - 240V or DC 9-72V Output voltage = Operating voltage Operating frequency: 433MHz(Same with Remote control) Encoding Type: learning code(you can buy extra 315MHz remote controllers for this receiver) Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A) Box size: approx 65 x 45 x 28mmAbout Learning Method:Input 12V for the Receiver , Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully. Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully. Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully. Delay time (5s): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully. Delay time (10s): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully. Delay time (15s): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.About Clearing Method:Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code.AC 75-220V 30AAlthough the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15ADC 9-72V 30AAlthough the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A
