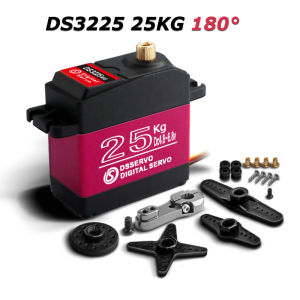

High Speed Servo 20KG/25KG/30KG/35KG/40KG 180/270° Metal Gear Digital Servo for 1/8 1/10 RC Car Model Baja Crawler Buggy Robot

1/8 1/10 1/12 RC Car High Speed Servo 20KG/25KG/30KG/35KG/40KG 180/270° Metal Gear Digital Servo for Baja RC Crawler Buggy Cars RobotApply Environmental Conditon:1.Storage Temperature Range:-30°C~80°C2.Operating Temperature Range:-25°C~70°CMechanical Specification:1. Size: 402040.5mm2. Weight: 58g±2g3. Limit angle: 360°4.Bearing: 2BB5.Horn gear spline: 25T Diameter:5.9mm6.Case : Engineering plastics+Aluminum alloy7.Connector wire: 300mm±5mm8.Motor: Carbon brush motorElectrical Specification:1.Working voltage range: 4.8 - 6.8V2.Command signal: Pulse width modification3.Amplifier type: Digital controller4.Pulse width range: 500~2500usec5.Neutral position: 1500usec6.Running degree: 180±3°(PWM 500~2500usec)or 270±3°(PWM500~2500usec)7.Dead band width: 3 usec8.Rotating direction Counterclockwise: (when 1000~2000usec)Packing List:1x digital servo1x 25T adjustable metal servo arm1x accessory bag
