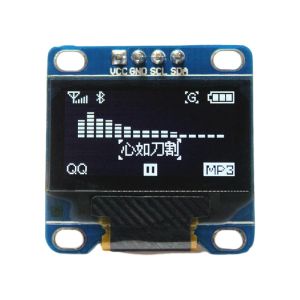

1.3" OLED Display Blue / White I2C IIC Serial 128X64 SH1106 LCD 1.3inch Screen Module for Arduino 51 MSP420 STIM32 SCR

1.3" Inch I2C IIC Serial 128X64 OLED LCD LED Display Module for Arduino 51 MSP420 STIM32 SCR SH1106 Description: Size: 1.3 Resolution: 128X64 Color: White / Blue (Optional ) Viewing angle: greater than 160 degrees Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC Working temperature: -30-80 degrees Volume: 27MM * 27MM * 4.1MM Driver IC: SH1106 Communication: IIC, only two I / O ports No font: The software takes word modulo Backlight: OLED self light, no backlight Interface: VCC: 3.3-5V GND: Ground SCL: Serial Clock SDA: Serial Data Documents link: https://cloud.mail.ru/public/c6d69303181c%2FIIC-OLED%20module%20FZ1109%20FZ1112%20FZ1113%20.rar Package Included: 1 X IIC OLED Moudle We accept drop shipping , wholesale and customzied service. Any question please feel free to contact us.
