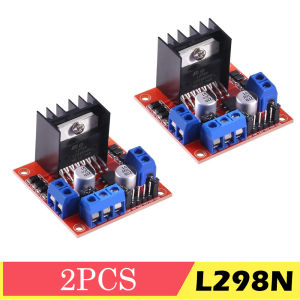

1/2/5/10pcs L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper for Arduino Smart Car Robot R3 2560 ESP32 ESP826

Description:

The L298N Motor Driver Board is built around the L298 dual full-bridge driver, made by ST. With this motor driver you can control DC motors, stepper motors, relays, and solenoids. It comes with two separate channels, called A and B, that you can use to drive 2 DC motors, or 1 stepper motor when combined.

• L298N as main chip, ST corporation production.
• Low heat,outstanding anti-interference performance.
• High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w.
• Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
• Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply. Large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Work with Ar duino and Motor

Specification:

• Double H bridge drive
• Chip: L298N (ST NEW)
• Logical voltage: 5V
• Drive voltage: 5V-35V
• Logical current: 0mA-36mA
• Drive current: 2A(MAX single bridge)
• Max power: 25W
• Size:43 x 43 x 26mm
