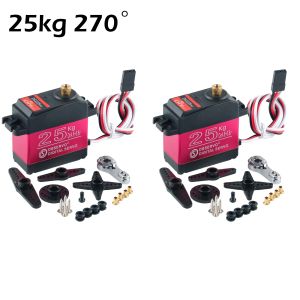

Dsservo DS3225 Servo 25Kg RC Digital Servo Full Metal Gear 25T Servo Horn Arm 180 270 Degree for DIY Baja Car RC Robotic Arm

DS3225MG 25Kg 180 270 Degree RC Digital Servo Full Metal Gear with 25T Servo Arm Horn Kit

DS3225MG servo is suitable for 1/8, 1/10, 1/12 Scale Crawler Truck, RC Car / Robotic arm / Boat and other remote control models.
It is water resistant servo, not waterproof servo, it works if gets a little wet, but can't work under the water, so pls be careful not to get it submerged in water, otherwise, it will be ruined.
Control system: PWM(Pulse width modification), sensitive response, Pulse width range is around 500~2500μsec.
Full metal gear in copper&aluminum, CNC aluminum middle Shell. 25Kg.cm High torque steering servo for robotic arm, boats, vehicles and other remote control toys.

DS3225MG digital servo Model: DS3225MG Type: Digital Servo Torque: 25kg/cm Control angle: 180 / 270 degree Control system: PWM(Pulse width modification) Operating voltage: 4.8-6.8V Gear ratio: 275:1 Waterproof performance: IP66 (it can't work under the water, please be careful not to put it under the water) Full metal gear, dual ball bearings, CNC aluminium middle Shell. Electrical Specification Operating Voltage: --------------5V-----------6.8V Idle current(at stopped): -------4mA----------5mA Operating speed (at no load): 0.16 sec/60°---0.14sec/60° Stall torque (at locked): -------24.5 kg-cm----28 kg-cm Stall current (at locked): --------2.1A----------2.9A Control Specification Control System: PWM(Pulse width modification) Pulse width range: 500～2500µsec Neutral position: 1500µsec Running degree: 180° or 270°(when 500～2500 μ sec) Dead band width: 3 µsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500～2500 µsec) DS3225MG digital servo 3Pin wire DS3225MG servo is with 3Pin Plug wire. Plug type: JR, FUTABA General Red wire: ''+'' (power positive) Black wire: ''-'' (power negative'' White wire: Signal
