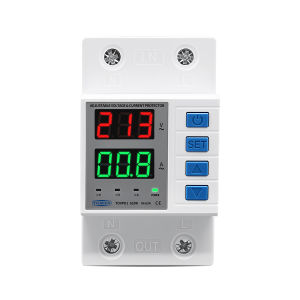

TOMZN Adjustable Voltage Current Protector Cut off L And N Isolation AC 110V 230V 63A Over/Under Voltage Over Current Protection

TOVPD1-63DK Can simultaneously isolate both L and NGeneral  Adjustable voltage and current protective device is an intelligent protector integrated with over-voltage protector, under-voltage protector and over-current protector. In case of over-voltage fault, under-voltage fault or over-current fault in the line, this product can instantly power off to prevent electrical equipment from being damaged. The over-voltage, under-voltage, and over-current values of this product can all be set by the user and adjusted according to local practical conditions.Functions1.Over-voltage protection2.Under-voltage protection3.Over-current protection4.Automatic recovery5.Voltage display(voltage measurement)6.Current display (current measurement)7.Voltage calibration: Voltage ±9.5% adjustable8.Restore factory settings: press the down button for more than 6s9.Fault inquiry: Press the UP button from more than 12SProduct Parameters1.Model number: TOVPD1-60DK2.Power supply: 110V 230VAC 50/60Hz3.Max.Loading power: 1~63A  Adjustable(default: 63A)4.Over-voltage protection value range: 100-300V(default: 270V)   Over-voltage recovery voltage range: 95V-295V(default: 95V)   Over-voltage protection action time:0.1s~30s(default value: 1s)   Over-voltage recovery delay time: 1s~500s(default: 30s)5.Under-voltage protection value range: 80-280V(default: 80V)   Under-voltage recovery voltage range: 85-285V (default:285V)   Under-voltage protection action time: 0.1s~30s(default: 1s)   Under-voltage recovery delay time: 1s~500s(default:30s)6.Over-current adjustment range: 1-63A (default:40A)   Over-current action range: 0.1~30 second (default: 1s)   Over-current recovery delay time: 1s~500s(default:30s)7.Power-on delay time: 1s~500s(default:10s)9.Power consumption: <2W10.Electric machinery life: 100,000 times11.Installation: 35mm DIN rail
