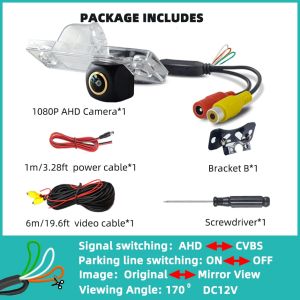

CVBS or AHD 170° Rear View Backup Camera Reverse Parking Safety for Chevrolet Captiva AVEO T250 Cruze Sedan Orlando Spark Epica.

For Chevy Chevrolet Captiva/Holden Captiva/Daewoo Winstorm 2006~2018For Chevrolet AVEO(T250) 2006-2011For 2011-2014 Chevrolet Cruze/Holden Cruze sedanFor Daewoo Lacetti/Gentra/Nubira For Chevrolet Lacetti/Optra/Nubira 2002-2009For Chevrolet Orlando 2010-2018For Chevrolet Spark 2005-2019For Chevrolet Epica/Tosca/Daewoo Tosca/Holden Epica 2006 2007 2008 2009 2010 2011 2012 2013►This product outputsCVBS or AHD signal (switchable), with RCA connector , with parking line on or off (switchable), power input: DC12V►Direct replacement of the license plate light cover, damage-free installation, stylish and elegant.► Dimensions of license plate light positions may vary across countries/regions for the same vehicle model. We are unable to verify all variations. Please check whether the specific bracket fits your vehicle. Thank you for your understanding.Purchase Notice► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes).►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA).►Signal Switching Guide:For displays requiring signal: Factory Settings > Reversing (Image) Settings > Select signalAHD Camera Feature :* Viewing angle: Real 170 Degrees Visible Range .* Signal format: NTSC* Image resolution: 200W pixels* Video output: AHD, CVBS signal switchable* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation* Lens : 14/16MM Fisheye 6 glass Lens .* Low illumination: 0.01Lux* Signal to noise ratio: ≥69dB* Working power supply: DC12V/2A* Working temperature: -45 °C ~ +70°C* Maximum power: 3WPackage includes:1 x Rear View Camera1 x 6m Video Cable1 x 1m Power Cable1 x screwdriver2 x brackets (1 of which is mounted on the camera)► 2 types of brackets are included: Bracket B is universal type, and Bracket A is designed specifically for license plate lights.（Cut）Cable Control Functions:► Green Cable: AHD/CVBS signal switching► White Cable: Parking line on/off► Orange Cable: Image flip functionStarlight Night Vision Technology:Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations.Key Advantages:►Full-color imaging in extreme low-light conditions►Enhanced object recognition ►0.001 lux minimum illumination thresholdAHD Technical Highlights:►HD real-time transmission (25fps@1080P/720P)►500m coaxial cable transmission range►Seamless integration with legacy analog systems►Q1: No Signal/Black Screen DetectionSymptoms:"No Signal" alertPersistent black screenTroubleshooting Protocol:► Power VerificationConfirm 12V DC power delivery to camera (test with multimeter at B+ terminal)Bypass vehicle wiring: Connect directly to battery terminals for bench test► Signal Source ValidationCheck display input mode: Disconnect green control wire to force CVBS modeCycle power after signal switching (AHD↔CVBS transition requires reboot)► Legacy System CheckTest CVBS compatibility: Connect to TV's RCA input (NTSC standard verification)Q2: Monochrome Display IssueObserved Behavior:Loss of color renderingGrayscale imagingDiagnostic Procedure:► Signal Standard AlignmentPAL/NTSC mismatch resolution:AHD 1080P cameras: Set to PAL (50Hz)CVBS analog cameras: Configure NTSC (60Hz)
