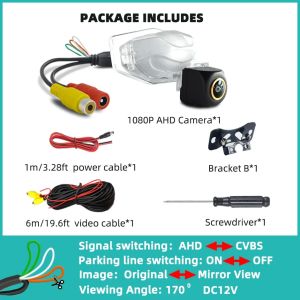

Backup Camera170° HD Rear View Reverse AHD or CVBS for Honda CRV Odyssey Accord Crosstour FR-V Fit Jazz HRV CRZ CRX Jade Car

Vehicle Camera Installation Bracket for Honda Fit CRV Odyssey Jade 2007-2016 Car Rear View Camera Applicable models: For Honda Fit 2008-2016 For Honda CRV 2007/2008/2010/2016 For Honda Odyssey 2009-2014 For Honda Jade 2013 Purchase Notice ► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes). ►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA). ►This product outputsCVBS or AHD signal (switchable), with RCA connector , with parking line on or off (switchable). ►Signal Switching Guide:For displays requiring signal: Factory Settings > Reversing (Image) Settings > Select signal ► Direct replacement of the license plate light cover, damage-free installation, stylish and elegant. ► Dimensions of license plate light positions may vary across countries/regions for the same vehicle model. We are unable to verify all variations. Please check whether the specific bracket fits your vehicle. Thank you for your understanding. AHD Camera Feature : * Viewing angle: Real 170 Degrees Visible Range . * Signal format: NTSC * Image resolution: 200W pixels * Video output: AHD, CVBS signal switchable * Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters. * Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation * Lens : 14/16MM Fisheye 6 glass Lens . * Low illumination: 0.01Lux * Signal to noise ratio: ≥69dB * Working power supply: DC12V/2A * Working temperature: -45 °C ~ +70°C * Maximum power: 3W Package includes: 1 x Rear View Camera 1 x 6m Video Cable 1 x 1m Power Cable 1 x screwdriver 2 x brackets (1 of which is mounted on the camera) ► 2 types of brackets are included: Bracket B is universal type, and Bracket A is designed specifically for license plate lights. （Cut）Cable Control Functions: ► Green Cable: AHD/CVBS signal switching ► White Cable: Parking line on/off ► Orange Cable: Image flip function Starlight Night Vision Technology: Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations. Key Advantages: ►Full-color imaging in extreme low-light conditions ►Enhanced object recognition ►0.001 lux minimum illumination threshold AHD Technical Highlights: ►HD real-time transmission (25fps@1080P/720P) ►500m coaxial cable transmission range ►Seamless integration with legacy analog systems ► Q1: No Signal/Black Screen Detection Symptoms: "No Signal" alert Persistent black screen Troubleshooting Protocol: ► Power Verification Confirm 12V DC power delivery to camera (test with multimeter at B+ terminal) Bypass vehicle wiring: Connect directly to battery terminals for bench test ► Signal Source Validation Check display input mode: Disconnect green control wire to force CVBS mode Cycle power after signal switching (AHD↔CVBS transition requires reboot) ► Legacy System Check Test CVBS compatibility: Connect to TV's RCA input (NTSC standard verification) Q2: Monochrome Display Issue Observed Behavior: Loss of color rendering Grayscale imaging Diagnostic Procedure: ► Signal Standard Alignment PAL/NTSC mismatch resolution: AHD 1080P cameras: Set to PAL (50Hz) CVBS analog cameras: Configure NTSC (60Hz)
