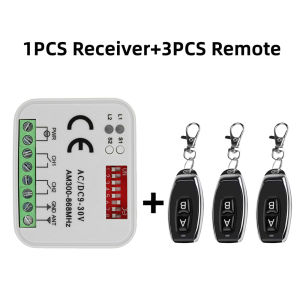

Remote Control Switch Receiver 300-868MHz 433MHz Receiver Universal 9-30V For Garage Door Control Garage Command

Why choose me?* Sales Champion* Very good reviews* Quality assurance* Quality service* Shipping in 12 hoursSpecifications:1)Name: Universal receiver 300-900mhz2)Operating Voltage: AC/DC 9V-30V3)Channel: 2.4)Frequency: 300MHz - 900MHz.5) Distance: 30-50 meters.6) Very mini size: 5.5cm4.5cm1.0cm.7) One receiver can work with 400 codes.8) It don’t interference other remotes and receivers.9) Brand selector: With 8 dip switches user can make different combination for different remote brands.10)Code: Rolling and Fixed code & Learning code.11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.Working Frequency : 300MHz-868MHz(Rolling Code & Fixed Code & Learning Code)300MHz310MHz315MHz318MHz390MHz433.4MHz433MHz433.92MHz868MHz868.3MHz868.8MHzCan identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),and many other main brands in the marketFeatures* Receive stronger signal* One receiver can work 400 codes* Simple operation, better quality and trustworthy.* It will not interfere with other remotes and receivers* Compatible with multiple brands of remote controlsProgramming a new remote1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP. 2) Press the learn button. The will LED turn on. 3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully. 4) Repeat step 2 for another button.5)The 2-nd channel programming procedure is the same. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recoveredSpecifications Of The Remote Control:Operating frequency: 433MHzPower by (Battery included ),Material: PVC.Button: 4 buttons/2 buttonsEncoding type: 1527 Learning Code.Transfers distance: 20-50mI suggest you buy my remote, the smart receiver is not compatible with clone codeUltra long transmission distance, To be used with our receiver, can reach a distance of 50-100 metersPlease note, This remote control can only work with our receiver, It cannot be used alone.
