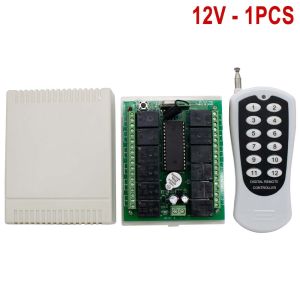

RF Control System with Relay Receiver & Transmitter DC 12V 12CH Wireless Remote Switch 433MHz

Features:Wireless control, easy to installControl Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC 12V.You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.This switch can learn different coding remote controls (such as 2262,1527 ect.)One/several transmitters can control one/several receivers simultaneously.If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won’t affect each other.Transmitting Frequency: 433MHzThe wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.About Receiver:Channel: 12 CHRadio Frequency: 433MHZOperating Voltage: DC12V or DC24VThe way of output:A. 1-12CH Momentary-----Set jumper ON "A&L"B. 1-12CH Latched----- Set jumper ON 1 PIN (Don't used jumper)C. 1-12CH Toggle-- --Set jumper ON "B&L" MomentaryPress the Transmitter button 1, the receiver relay 1th is ON, release button 1; the receiver relay 1th is OFF, the same as 2/3/4/5/6/7/8/9/10/11/12. 12CH are independent.TogglePress transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6/7/8/9/10/11/12. 12CH are independent.LatchedPress transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6/7/8/9/10/11/12 OFF.Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6/7/8/9/10/11/12 is OFF.Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6/7/8/9/10/11/12 is OFFPress transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6/7/8/9/10/11/12 is OFF. …………….It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.Learning way and steps:Learning Code:Input DC12V for the Receiver, Press the Learning Button on the Receiver ,LED Indicator ON ,Release it, then press the Transmitter Button, Receiver LED Indicator flash for 3 time, it mean learning is successful. （Disconnect the power and connect again for used normal ）Clearing Code:Input DC12V for the Receiver, press the learning button on the receiver and hold for about 8s until the Receiver LED indicator OFF, it mean the code have been cleared.About Transmitter:Buttons: 12 ButtonsBattery: 23A 12V (battery not included)Frequency:433MHzRemote Control Distance: 50-200mEncode: Fixed code by soldering and learning codePay attention:The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to change it for you before the delivery.Here is 12 Channel switch and 12-button remote control. You can choose the working way as you need. We default is momentary.Package included:1 x Remote Control Switch1 x Transmitter
