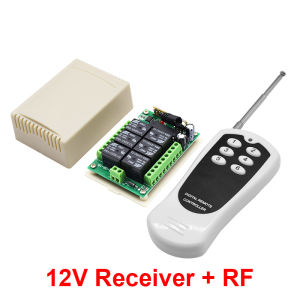

6 Relay Receiver Wireless Remote System with Digital RF Remote 10A 12V/24V DC for Home Plant Lighting Fan Pump Control

Features:Wireless control, easy to install.Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC12V 24V.You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.This switch can learn different coding remote controls (such as 2262, 1527)One/several transmitters can control one/several receivers simultaneously.If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won't affect each other.Operating Frequency: 433MHzThe wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.About Receiver:Channel: 6 CHRadio Frequency: 433MHZOperating Voltage: DC12V 24VOperating Type: Jog /Momentary/Non-Latched (Press and hold->On, Release->Off )Interlock /Latched (Press -> On; Press other button -> Off )Self-lock/Toggle (Press->On, Press again->Off)Coding Type: Learning code Maximum Working Current: 10AOutput Mode: Without voltage output (also called Contact output)Step-down approach: resistance-capacitance (RC)About Working way/ output Way:Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.Momentary/ Jog--Press and hold -> On; Release -> OffToggle/ Self-lock--Press -> On; Press again -> OffLatched/ Interlock--Press -> On; Press other button -> OffAbout Transmitter:Buttons: 6 ButtonsWorking Voltage: DC12V (battery not included)Frequency:433MHzRemote Control Distance: 50-200mEncode: Fixed code by soldering and learning codeAbout Learning and cleaning Method:Learning: Press the learning key, it means the controller putting in the learning state when the indicator goes ON, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times after 1 second, then recover to normally OFF, which means successfully studied.After pressing any buttons of the remote control to transmit signal, the indicator didn't flash, 10 seconds later it still recovers to normally on, but it study unsuccessfully.Cleaning: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote receiver did not work, it means cleaning code successful.A: Signal non-lock (jog): press the NO.1 button of the remote control to learnB: Signal self-lock (self-lock): press the No.2 button to learn, each channel is independent of the othersC: Signal inter-lock: press the NO.3 button to learnD: 1CH-3CH is jog, 4CH-6CH is self-lock press the NO.4button to learnE: 1CH-3CH is jog, 4CH-6CH is inter-lock press the NO.5button to learnF: 1CH-2CH is jog, 3CH-6CH is inter-lock press the NO.6 button to learnPay attention:The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to change it for you before the delivery.Here is 6 Channel switch and 6-button remote control. You can choose the working way as you need. We default is momentary.Package included:1 x Remote Control Switch1 x Transmitter
