Backup Camera Rear View Reverse 170° AHD1080P/720P Parking Safety for Toyota Agya Wigo Daihatsu Ayla 2017-2023 Perodua Myvi 3..

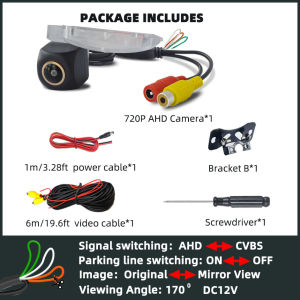

For Toyota Agya Facelift 2017-2023 For Toyota Wigo Facelift 2017-2023 For Daihatsu Ayla Facelift 2017-2023 For Subaru Dex 2006~2018 MINI MPV For perodua myvi The third generation For DAIHATSU Ayla 1. Easy to install, Installed in the position of the car license plate light perfect match to original car. Important Note: 1. Check if it can match your car license plate lamp place size and appearance. 2. The same car model in different countries may have some difference. 1 x Rear View Camera 1 x 6m Video Cable 1 x 1m Power Cable 1 x screwdriver 2 x brackets (1 of which is mounted on the camera) ► Direct replacement of the license plate light cover, damage-free installation, stylish and elegant. ► Dimensions of license plate light positions may vary across countries/regions for the same vehicle model. We are unable to verify all variations. Please check whether the specific bracket fits your vehicle. Thank you for your understanding. Purchase Notice ► Video Signal Compatibility:The video signal must be compatible with your device. Common signals are AHD or CVBS (most in-car displays allow switching between CVBS and AHD modes). ►Connector Compatibility:Ensure the connector type matches your device (e.g., 4-PIN or RCA). ►This product outputsCVBS or AHD signal (switchable), with RCA connector , with parking line on or off (switchable). ►Signal Switching Guide:For displays requiring signal: Factory Settings > Reversing (Image) Settings > Select signal ► 2 types of brackets are included: Bracket B is universal type, and Bracket A is designed specifically for license plate lights. AHD Camera Feature : * Viewing angle: Real 170 Degrees Visible Range . * Signal format: NTSC * Image resolution: 200W pixels * Video output: AHD, CVBS signal switchable * Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters. * Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation * Lens : 14/16MM Fisheye 6 glass Lens . * Low illumination: 0.01Lux * Signal to noise ratio: ≥69dB * Working power supply: DC12V/2A * Working temperature: -45 °C ~ +70°C * Maximum power: 3W （Cut）Cable Control Functions: ► Green Cable: AHD/CVBS signal switching ► White Cable: Parking line on/off ► Orange Cable: Image flip function Starlight Night Vision Technology: Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations. Key Advantages: ►Full-color imaging in extreme low-light conditions ►Enhanced object recognition ►0.001 lux minimum illumination threshold AHD Technical Highlights: ►HD real-time transmission (25fps@1080P/720P) ►500m coaxial cable transmission range ►Seamless integration with legacy analog systems ► Q1: No Signal/Black Screen Detection Symptoms: "No Signal" alert Persistent black screen Troubleshooting Protocol: ► Power Verification Confirm 12V DC power delivery to camera (test with multimeter at B+ terminal) Bypass vehicle wiring: Connect directly to battery terminals for bench test ► Signal Source Validation Check display input mode: Disconnect green control wire to force CVBS mode Cycle power after signal switching (AHD↔CVBS transition requires reboot) ► Legacy System Check Test CVBS compatibility: Connect to TV's RCA input (NTSC standard verification) Q2: Monochrome Display Issue Observed Behavior: Loss of color rendering Grayscale imaging Diagnostic Procedure: ► Signal Standard Alignment PAL/NTSC mismatch resolution: AHD 1080P cameras: Set to PAL (50Hz) CVBS analog cameras: Configure NTSC (60Hz)
