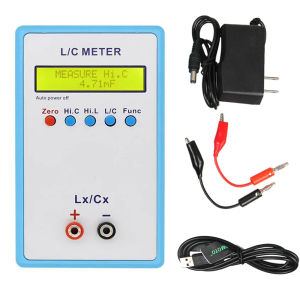

LC-200A LC200A Capacitance Meter Hand-held Digital LCD Capacitance Inductance Meter LC Measuring Meter 1pF-100mF 1uH-100H

LC-200A LC Capacitance Meter Hand-held Digital LCD Capacitance Inductance Meter LC Measuring Meter 1pF-100mF 1uH-100H Description:This product relative to the product on the market inductance capacitance meter (such as 6243 series) in the small value of the test has an absolute advantage is the accuracy and minimum resolution, and has a flexible line calibration measurement accuracy, can be maintained at any time. Instrument does not use any potentiometer adjustment, calibration parameters are completely stored in the internal FLASH microcontroller, wont lost if power-down ,more accurate and convenient than other potential calibration ways. Feature:Specification:• C range : Capacitance (1pF-10uF)• Capacitance accuracy : 1%(1pF~1uF), 5%(1uF~10uF)• Measurement resolution of capacitance （C Range）: 0.01pF• Hi.C range : Large capacitance ,1uF-100mF• Large capacitance accuracy: 5%(1uF-100mF)• Measurement resolution of large capacitance（Hi.C Range）: 0.01uF• L range : Inductance (1uH-100mH)• Inductance accuracy ：1%(1uH~100mH)• Measurement resolution of inductance（L Range）: 0.001uH• Hi.L range : Large inductance (0.001mH-100H)• Large inductance accuracy: 1%(100mH~1H),5%(1H~100H)• Measurement resolution of large inductance（Hi.L Range）: 0.001mH• Test Frequency: L Range、C Range,500kHz; Hi.L Range,500Hz~50KHz• Measurement method of capacitance、Inductance and Large Inductance: LC Resonance• Measurement method of large capacitance:Charge-discharge• Display:1602 LCD• Effective display digits: 4 digits• Interface to power supply:Mini USB &Φ5.5DC Socket,4 of AA Batteries( battery not included )• Supply Voltage:5V• Dimensions (L * W * H):1508929mm• Weight:198g• Package Size:20016060mm• Package weight: 280g Note:When measuring the frequncy of the inductance or Capacitance, pls press the black button, as the pic showsPls reset to zero, before testing a Capacitance or inductance,or it may damage the board . Package Include:1 x Capacitance Meter LC200A1 x Mini Usb Power Cable2 x Alligator Test Clip
